СКУ: GC4030M5
Контактор 40A 3F 220/240V
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Additional equipment possible
TRUE
-
Width in number of modular spacings
54
-
Number of contacts as normally open contact
3
-
Utility category
7
-
Slider for hand switch
FALSE
-
Voltage type (operating voltage)
EV000460
-
Voltage type (excitation voltage)
EV000460
-
Rated excitation voltage
220
-
Rated operation current
40
-
Max. load fluorescent lamp (parallel compensated)
1600
-
With day/night function
TRUE
-
Built-in depth
62.5
-
Hum-free
TRUE
-
Max. incandescent lamp load
5100
-
Max. load fluorescent lamp
2200
-
Max. load fluorescent lamp (Duo circuit)
1800
-
Number of contacts as normally closed contact
-
Rated operating voltage

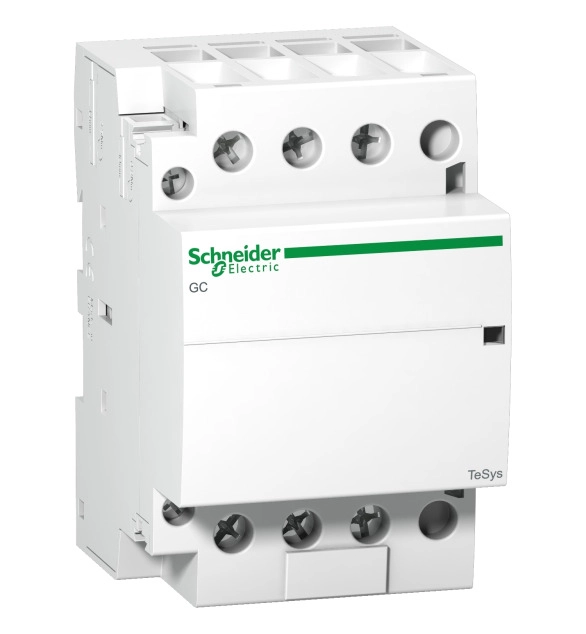

TeSys GC modular contactor, 3 poles (3NO), 40A/415V AC-7a (heating) and 15A/415V AC-7b (motor control), for household applications. Control voltage 220-240V AC 50Hz, state indicator on front. For use in modular panels, compact (54mm width), clipping on 35mm DIN rail, connection by screw terminals. Sold in lots of 4 units. Multi standards certified (IEC, EN, NF-USE, VDE, CEBEC, OVE).
