Контактор 40A 2P+2R 48V50/60HZ LC1D40008E7 | Spark & Co
  • 3D
|

СКУ: LC1D40008E7

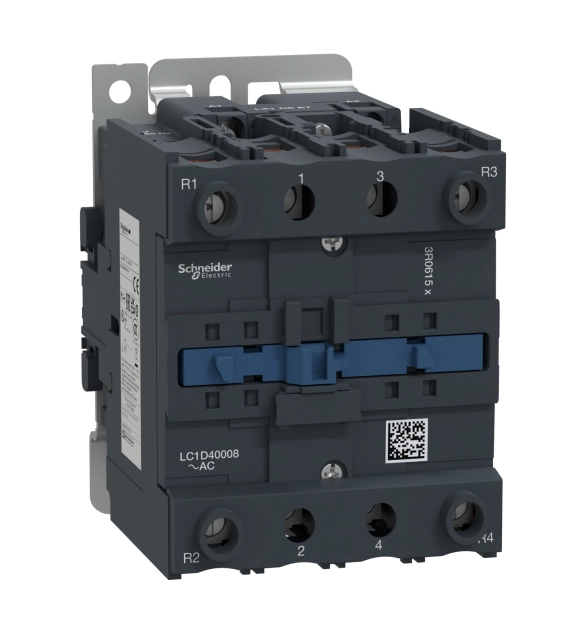

Контактор 40A 2P+2R 48V50/60HZ LC1D40008E7

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Voltage type for actuating
    EV000460
  • Rated control supply voltage Us at AC 50HZ
    48
  • Rated control supply voltage Us at AC 60HZ
    48
  • Modular version
    FALSE
  • Rated operation current Ie at AC-1, 400 V
    60
  • Number of normally closed contacts as main contact
    2
  • Number of normally open contacts as main contact
    2
  • Number of auxiliary contacts as normally closed contact
  • Number of auxiliary contacts as normally open contact

TeSys Deca contactor, 4 poles (2NO+2NC), for non-inductive load applications up to 60A/690V AC-1. It provides a 48V 50/60Hz AC coil, power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Without build-in auxiliary contacts, side and front mounting auxiliary contact blocks available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
