СКУ: LP4K09015BW3

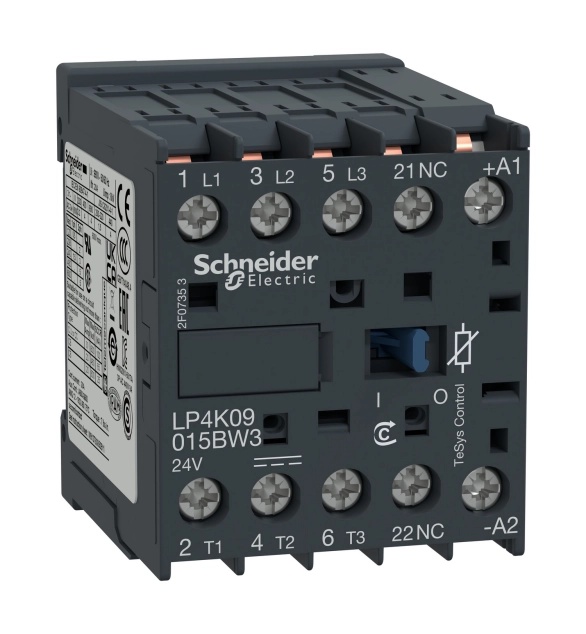

Контактор 3P+O VIS 24V DC
-
Brand
Schneider Electric
-
Rated operation power at AC-3, 400 V
4
-
Voltage type for actuating
EV000461
-
Rated control supply voltage Us at DC
24
-
Number of auxiliary contacts as normally closed contact
1
-
Number of auxiliary contacts as normally open contact
-
Modular version
FALSE
-
Number of normally closed contacts as main contact
-
Number of normally open contacts as main contact
3
-
Rated operation current Ie at AC-3, 400 V
9
-
Rated operation power at AC-4, 400 V
2.2
-
Rated operation current Ie at AC-1, 400 V
20
-
Rated operation current Ie at AC-4, 400 V
6
-
Type of electrical connection of main circuit
EV003963
The VarPlus detuned reactor are designed to protect the capacitor by preventing the amplification of the harmonics present in the system. Capacitors and Reactors are configured in Series resonant circuit. Tuned so that the series resonant frequency is below the lowest harmonic frequency present in the system. This reactor is rated for 50 kVar output power with 3.8/190 Hz tuning order at 690V AC at 50 Hz. Relative impedance, 7 %. This component meet the standards IEC 60068. This component require a forced convection, a fan need to be added. The case dimensions are 270mm in height, 260mm in width and 200mm in depth. For a product weight of 22 kg.
