СКУ: CR1F150U7

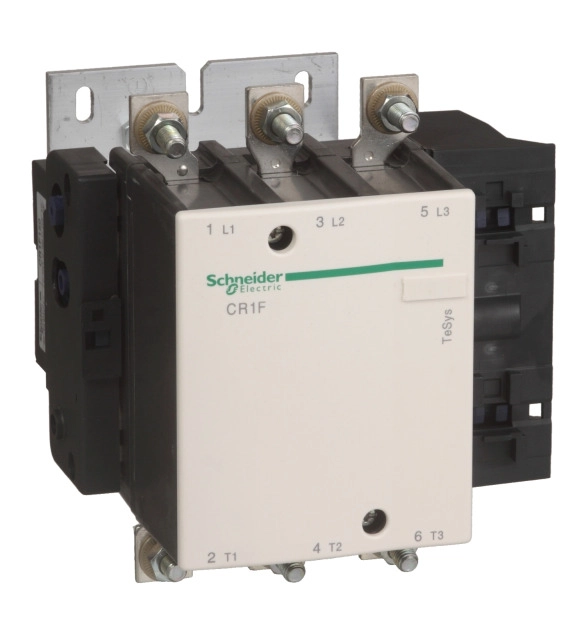

Контактор 150А ACCRO.240V 50/60HZ CR1F150U7
-
Brand
Schneider Electric
-
Voltage type for actuating
EV000460
-
Type of electrical connection of main circuit
EV008864
-
Rated control supply voltage Us at AC 50HZ
240
-
Rated control supply voltage Us at AC 60HZ
240
-
Modular version
FALSE
-
Number of normally open contacts as main contact
3
-
Rated operation current Ie at AC-4, 400 V
50
-
Rated operation power at AC-4, 400 V
22
-
Rated operation power at AC-3, 400 V
75
-
Rated operation current Ie at AC-1, 400 V
250
-
Rated operation current Ie at AC-3, 400 V
150
-
Number of auxiliary contacts as normally closed contact
-
Number of auxiliary contacts as normally open contact
-
Number of normally closed contacts as main contact
TeSys F magnetic latching contactor, 3 poles (3NO), 150A/1000V AC-3, for motor applications up to 75kW@400V. It provides a double coil 240V AC (50-60Hz) for latching and unlatching, bolt terminals for bars or cables with lugs. Supply to the coils must be applied by pulsed contacts leading to energy saving and no sensibility to interferences for contactors remaining in closed state for long periods. For operating rates until 120 cycles/hour and environments until 70°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to its drawer-mounted coil and a large choice of add-on blocks (instantaneous and time delay auxiliary contacts, suppressor blocks) and connection accessories (to be ordered separately). It conforms to IEC 60158-1 and IEC 60947-4.
