СКУ: PKF16F735
Контакт за табло 16A 3P-N-E 380-415V IP67 50-60Hz PKF16F735
-
Brand
Schneider Electric
-
Material
EV000139
-
RAL-number
7035
-
Rated frequency
50
-
Connection system
EV001008
-
Identification colour
EV000233
-
Clock hour position
6
-
Military model
FALSE
-
Cable entry
EV000494
-
Angle of plug
EV000409
-
Voltage according to EN 60309-2
EV009026
-
Rated voltage
380
-
Number of poles
5
-
Drill hole distance horizontal
77
-
IEC-amperage
16
-
Degree of protection (IP)
EV006418
-
Flange size vertical
100
-
Flange size horizontal
90
-
Drill hole distance vertical
60

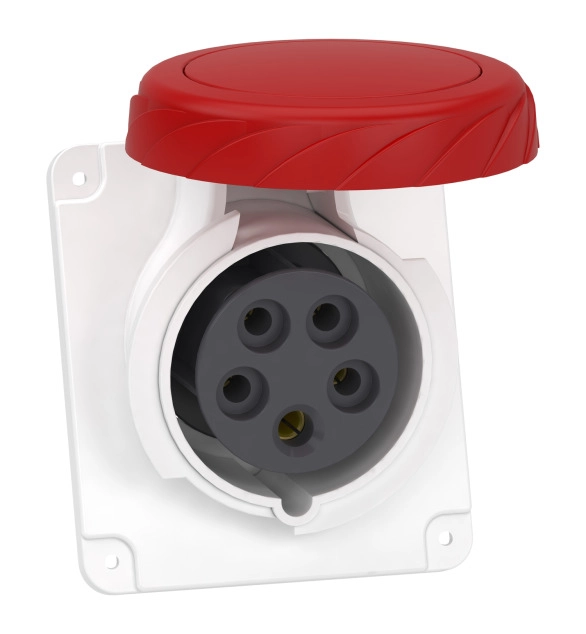

This Pratika industrial wander socket with captive screws connection is straight. It has 3P+N+E poles, rated current is 16A and the operating voltage is 380VAC to 415VAC. The dimensions of the base plate are (W) 97mm x (H) 97mm. The degree of protection is IP44 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The size of the cable entries in 16A is 8mm to 15mm for 1mm² to 4mm² cables. The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
