Kомбинирана дефектнотокова защита (RCBO), Acti9 iDPNa Vigi, 1P+N, 6A, C крива, 4500A, AC тип, 30mA | Spark & Co
  • 3D
|

СКУ: A9D34606

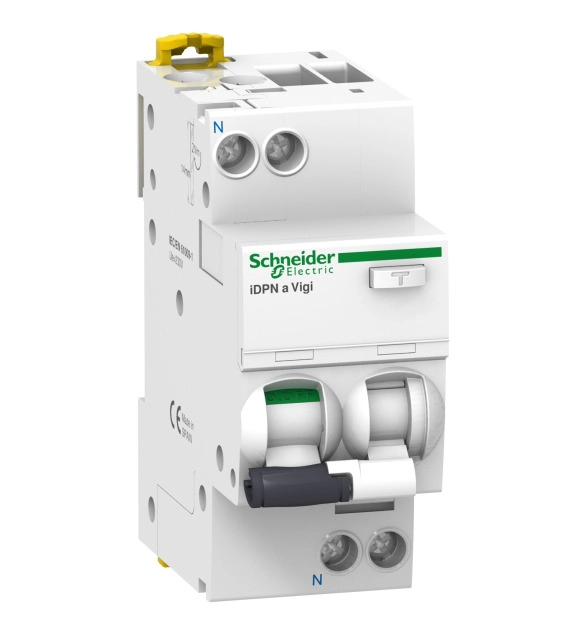

Kомбинирана дефектнотокова защита (RCBO), Acti9 iDPNa Vigi, 1P+N, 6A, C крива, 4500A, AC тип, 30mA

  • Brand
    Schneider Electric
  • Degree of protection (IP)
    EV006405
  • Width in number of modular spacings
    2
  • Number of poles (total)
    2
  • Release characteristic
    EV000084
  • Concurrently switching neutral conductor
    TRUE
  • Flush-mounted installation
    FALSE
  • Connectable conductor cross section multi-wired
    1
  • Pollution degree
    3
  • Number of protected poles
    1
  • Rated current
    10
  • Rated voltage
    230
  • Ambient temperature during operating
    -25
  • With interlocking device
    TRUE
  • Anti-nuisance tripping version
    FALSE
  • Leakage current type
    EV000896
  • Rated fault current
    0.03
  • Surge current capacity
    0.25
  • Built-in depth
    44
  • Voltage type
    EV000460
  • Connectable conductor cross section solid-core
    1
  • Over voltage category
    3
  • Frequency
    EV008013
  • Rated impulse withstand voltage Uimp
    4
  • Current limiting class
    3
  • Rated insulation voltage Ui
    400
  • Rated short-circuit breaking capacity Icn according to EN 61009-1
    10
  • Disconnection characteristic
    EV003978
  • Rated short-circuit breaking capacity according to EN 61009
    10

This Acti9 Reflex iC60H is a low voltage integrated control circuit breaker. It combines integrated circuit breaker protection and load control for lighting control applications. It has 4P with 4 protected poles, rated current 25A and C tripping curve. Y1/Y2 inputs remote control voltage is 230VAC and 1A. They allow local and remote control of lighting. Y3 input remote control voltage is 24VDC and 5.5mA. Y3 allow easy connection to a Power Logic Controller or a Building Management System. Breaking capacity at 230VAC is 30kA according to IEC 60947-2 . Breaking capacity at 400VAC is 15kA according to IEC 60974-2. Electrical endurance goes up to 30000 cycles for AC-1 or AC-7a. Electrical endurance goes up to 6000 cycles for AC-5a or AC-5b and AC-7c. It is possible to associate a vigi block to have a differential protection.
