СКУ: MTN676090

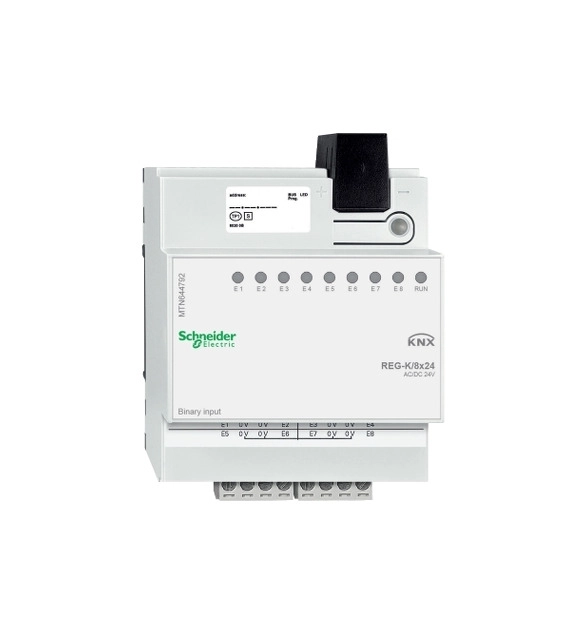

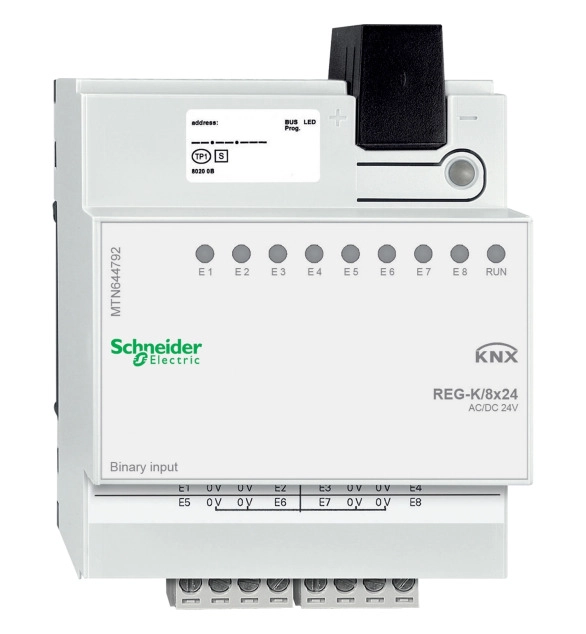

KNX логически модул REG-K, светло сив

  • Brand
    Schneider Electric
  • Width in number of modular spacings
    4
  • With LED indication
    TRUE
  • Bus system KNX radio
    FALSE
  • Bus system Powernet
    FALSE
  • Bus system LON
    FALSE
  • Mounting method
    EV006471
  • Bus system radio frequent
    FALSE
  • Other bus systems
    EV000494
  • Bus system KNX
    TRUE
  • Number of lines to feed
    1
  • Number of integrated choke coils
    1
  • Secondary voltage
    30
  • Bus voltage stockable
    FALSE
  • Max. output current
    320

KNX Binary input REG-K/8x230. For connecting eight conventional devices with AC 230 V outputs to the KNX. With integrated bus coupler and plug-in screw terminals. The input voltage level is displayed at each input with a yellow LED. A green LED indicates that the device is ready for operation once the application has been loaded. For installation on DIN rails TH35 according to EN 60715. The bus is connected using a bus connecting terminal. a data rail is not necessary. KNX software functions:. Switching, dimming or blind control via 1 or 2 inputs. Positioning values for blind control (8-bit). Pulse edges with 1-, 2-, 4-, or 8-bit telegrams. Differentiation between short/long operation. Initialisation telegram. Cyclical sending. Pulse edges with 2-byte telegrams. 8-bit linear regulator. Disable function. Break/make contact. Debounce time. Input voltage: AC 230 V, 50-60Hz. Inputs: 8. Input current: AC 12 mA. 0 signal: /equal 160 V. Cable length: max. 100 m. Device width: 4 modules, approx. 70 mm. Contents: With bus connecting terminal and cable cover. Colour: light grey.
