СКУ: NSYTRP42
Клеми Linergy - 4mm? 32A 1x1 - сив
-
Brand
Schneider Electric
-
Colour
EV000270
-
Mounting method
EV005503
-
Number of levels
1
-
Internally connected stages
FALSE
-
Inflammability class of insulation material according to with UL94
EV004429
-
Material insulation body
EV000403
-
Width
6.2
-
Rated voltage
800
-
Depth
56
-
Connectable conductor cross section solid-core
0.2
-
Closing plate required
TRUE
-
Connectable conductor cross section fine-strand with cable end sleeve
0.2
-
Explosion-tested version 'Ex e'
TRUE
-
Connectable conductor cross section multi-wired
0.2
-
Operating temperature
-40
-
Number of clamp positions per level
2
-
Rated current In
32
-
Type of electrical connection 2
EV000414
-
Type of electrical connection 1
EV000414
-
Height
36.5
-
Connectable conductor cross section fine-strand without cable end sleeve
0.08

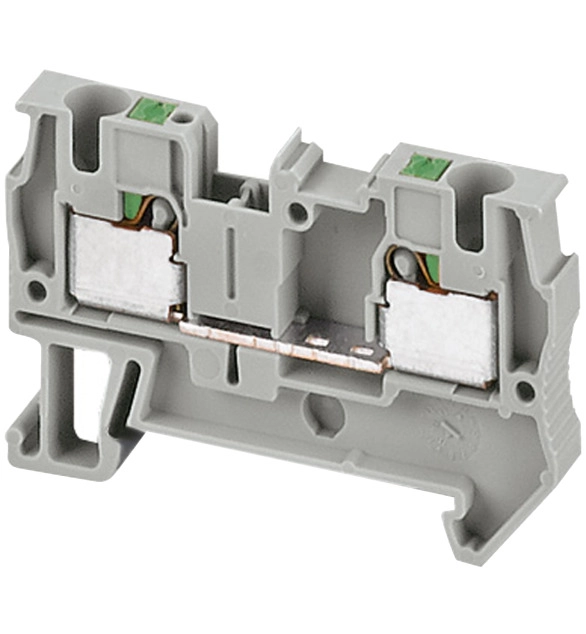

Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 4 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/UL and 800V conforming to EN/IEC 60947-7-1. The rated current is 32A conforming to EN/IEC 60947-7-1 and 30A conforming to CSA and UL. It has grey surface treatment. Mounting by clip-on and top connection by single-level 1x1 push-in terminals. It could be connection without tool and disconnection by flat screwdriver. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva Enclosure, PrismaSeT XS, Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, GL).
