СКУ: NSYTRP23

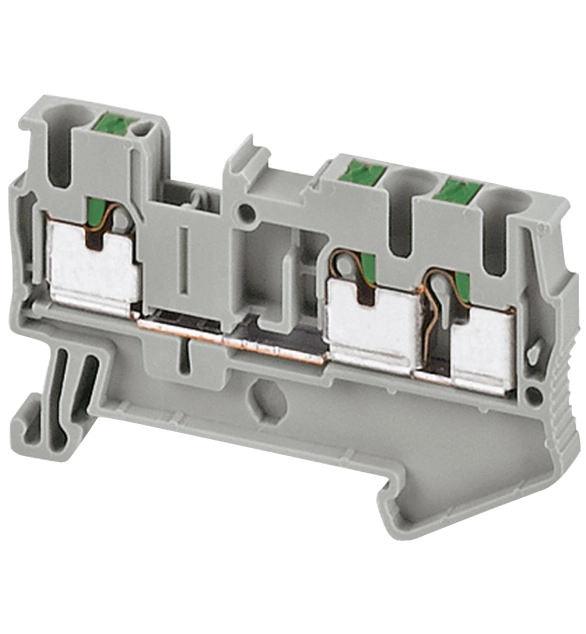

Клеми Linergy - 2.5mm² 24A 1x2 - сив
-
Brand
Schneider Electric
-
Colour
EV000270
-
Mounting method
EV005503
-
Number of levels
1
-
Internally connected stages
FALSE
-
Inflammability class of insulation material according to with UL94
EV004429
-
Material insulation body
EV000403
-
Rated voltage
800
-
Closing plate required
TRUE
-
Connectable conductor cross section fine-strand with cable end sleeve
0.2
-
Explosion-tested version 'Ex e'
TRUE
-
Operating temperature
-40
-
Width
5.2
-
Connectable conductor cross section solid-core
0.14
-
Connectable conductor cross section multi-wired
0.14
-
Type of electrical connection 2
EV000414
-
Depth
60.5
-
Type of electrical connection 1
EV000414
-
Height
36.5
-
Rated current In
24
-
Number of clamp positions per level
3
-
Connectable conductor cross section fine-strand without cable end sleeve
0.08
Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/UL and 800V conforming to EN/IEC 60947-7-1. The rated current is 24A conforming to EN/IEC 60947-7-1 and 20A conforming to CSA and UL. It has grey surface treatment. Mounting by clip-on and top connection by single-level 1x2 push-in terminals. It could be connection without tool and disconnection by flat screwdriver. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva Enclosure, PrismaSeT XS, Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, GL).
