СКУ: LE1GVMEK

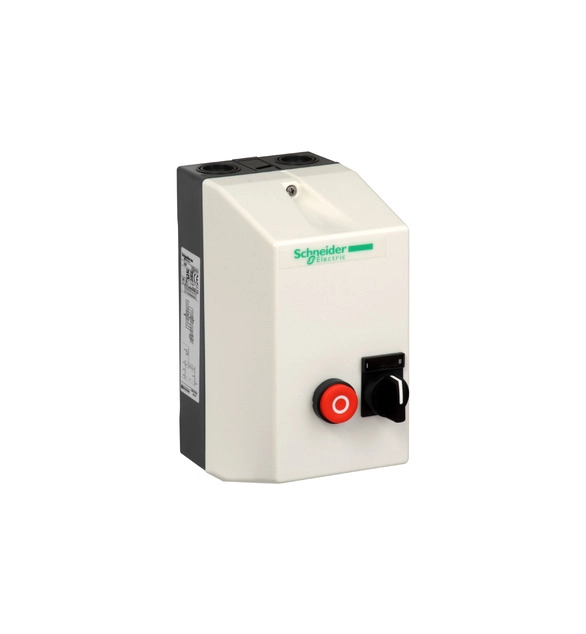

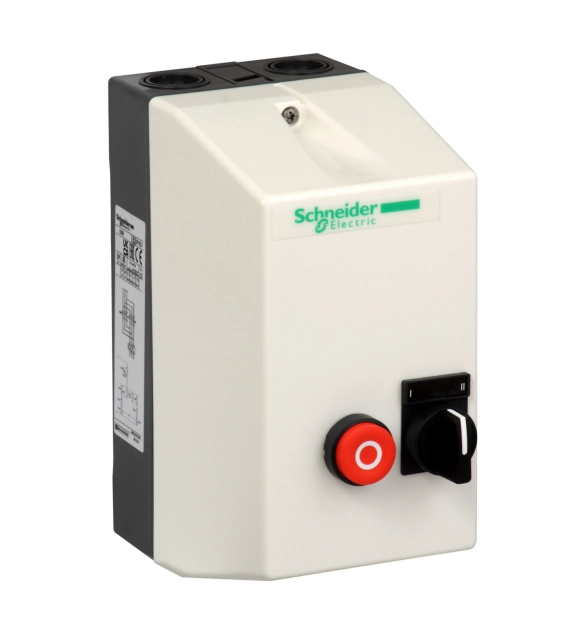

SCHNEIDER ELECTRIC Enclosure for DOL starter with circuit breaker

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Rated operation power at AC-3, 400 V
    11
  • Voltage type for actuating
    EV000460
  • Degree of protection (IP)
    EV006421
  • Suitable for emergency stop
    FALSE
  • Supporting protocol for SERCOS
    FALSE
  • Supporting protocol for INTERBUS-Safety
    FALSE
  • Supporting protocol for AS-Interface Safety at Work
    FALSE
  • Supporting protocol for DeviceNet Safety
    FALSE
  • Supporting protocol for EtherNet/IP
    FALSE
  • Supporting protocol for Foundation Fieldbus
    FALSE
  • Supporting protocol for SafetyBUS p
    FALSE
  • Supporting protocol for PROFINET CBA
    FALSE
  • Supporting protocol for PROFINET IO
    FALSE
  • Supporting protocol for PROFIsafe
    FALSE
  • Supporting protocol for ASI
    FALSE
  • Supporting protocol for PROFIBUS
    FALSE
  • Supporting protocol for TCP/IP
    FALSE
  • Supporting protocol for CAN
    FALSE
  • Supporting protocol for INTERBUS
    FALSE
  • Supporting protocol for DeviceNet
    FALSE
  • Rail mounting possible
    FALSE
  • Supporting protocol for Modbus
    FALSE
  • Supporting protocol for Data-Highway
    FALSE
  • Supporting protocol for LON
    FALSE
  • Supporting protocol for SUCONET
    FALSE
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of auxiliary contacts as normally open contact
    1
  • With transformer
    FALSE
  • Type of electrical connection for auxiliary- and control current circuit
    EV000415
  • Type of motor starter
    EV004003
  • Supporting protocol for other bus systems
    FALSE
  • With fuse
    FALSE
  • Rated power, 575 V, 60 Hz, 3-phase
    15
  • Rated control supply voltage Us at AC 50HZ
    230
  • Number of indicator lights
  • Rated control supply voltage Us at AC 60HZ
    230
  • Number of command positions
    1
  • Width
    101
  • Ambient temperature, upper operating limit
    40
  • Height
    201
  • Depth
    153.5
  • With short-circuit release
    FALSE
  • Rated operation current Ie
    25
  • Rated operation current at AC-3, 400 V
    25
  • Rated operation power at AC-3, 230 V, 3-phase
    5.5
  • Rated power, 460 V, 60 Hz, 3-phase
    11

TeSys LE enclosed DOL starter for 3P non-reversing motor control up to 15kW at 400V. It includes a contactor LC1D with a 220V AC 50/60Hz control circuit. ON/OFF motor control by a green start push-button (I) and a red stop/reset push-button (O). Polycarbonate enclosure providing IP65 protection. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom. To operate, it must be fitted with a LRD thermal overload relay depending on the motor power (to be ordered separately). Conforming to IEC 60947-4-1, environmental compliant (RoHS/REACh).
