СКУ: NSYTRV26T

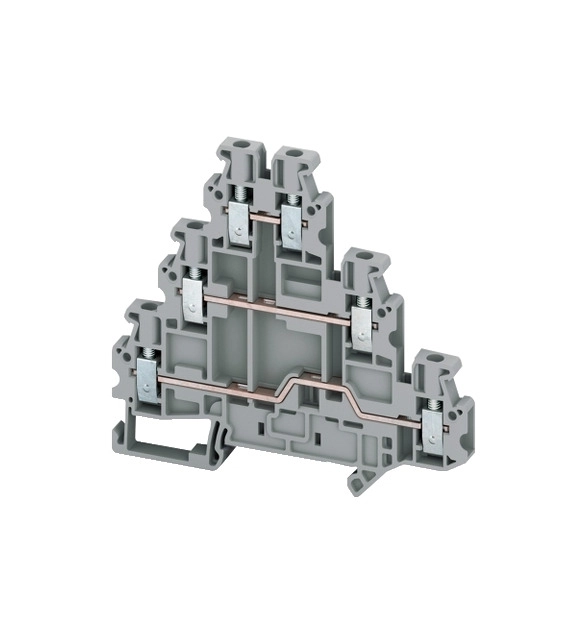

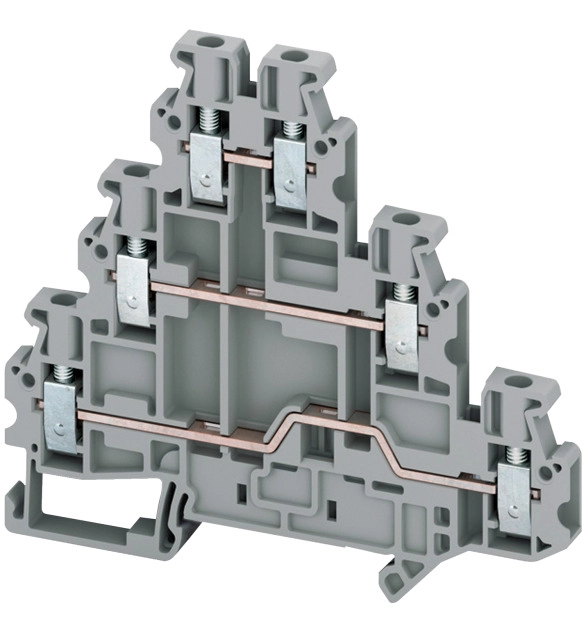

Клема триетажна 3 LEVELS, 6 POINTS, 2,5M NSYTRV26T
-
Brand
Schneider Electric
-
Colour
EV000270
-
Rated voltage
500
-
Number of levels
1
-
Type of electrical connection 1
EV000415
-
Internally connected stages
FALSE
-
Inflammability class of insulation material according to with UL94
EV004429
-
Material insulation body
EV000403
-
Depth
30
-
Width
6.2
-
Height
34
-
Type of electrical connection 2
EV000415
-
Mounting method
EV005504
-
Connectable conductor cross section solid-core
0.2
-
Closing plate required
TRUE
-
Connectable conductor cross section fine-strand with cable end sleeve
0.2
-
Explosion-tested version 'Ex e'
TRUE
-
Connectable conductor cross section multi-wired
0.2
-
Operating temperature
-40
-
Number of clamp positions per level
2
-
Connectable conductor cross section fine-strand without cable end sleeve
0.2
-
Rated current In
32
Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 35 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/UL and 1000V conforming to EN/IEC 60947-7-1. The rated current is 125A conforming to EN/IEC 60947-7-1 and 150A conforming to CSA/UL. It has grey surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva Enclosure, PrismaSeT XS, Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, GL).
