СКУ: NSYTRV42PE
Клема редова Ж/З зазем. 4кв.мм. NSYTRV42PE
-
Brand
Schneider Electric
-
Mounting method
EV005503
-
Number of levels
1
-
Type of electrical connection 1
EV000415
-
Inflammability class of insulation material according to with UL94
EV004429
-
Material insulation body
EV000403
-
Width
6.2
-
Type of electrical connection 2
EV000415
-
Closing plate required
TRUE
-
Operating temperature
-40
-
Number of clamp positions per level
2
-
Connectable conductor cross section solid-core
0.14
-
Connectable conductor cross section multi-wired
0.14
-
Connectable conductor cross section fine-strand without cable end sleeve
0.14
-
Colour
EV000120
-
PEN function possible
FALSE
-
Depth
47.7
-
Height
47.5
-
Connectable conductor cross section fine-strand with cable end sleeve
0.14

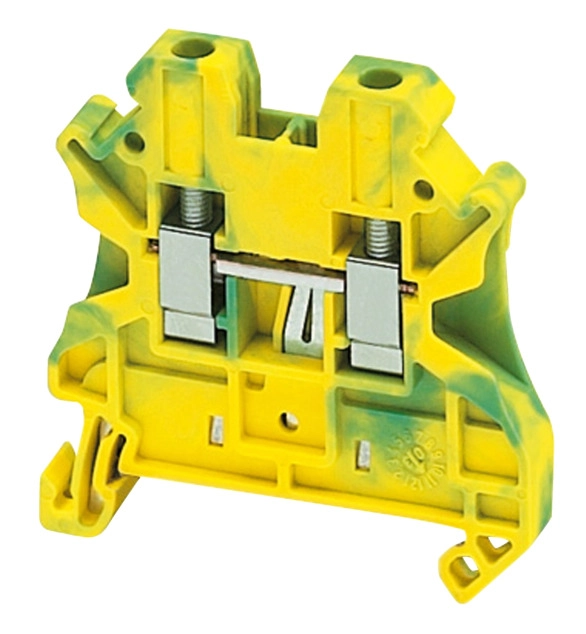

Linergy TR is terminal block for Linergy. It belongs to linergy protective earth terminal block with 4 mm² nominal cross section. It has green-yellow surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT ,Mureva Enclosure, PrismaSeT XS, Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, GL, DNV).
