Клема редова синя 16кв.мм. NSYTRV162BL | Spark & Co
  • 3D
|

СКУ: NSYTRV162BL

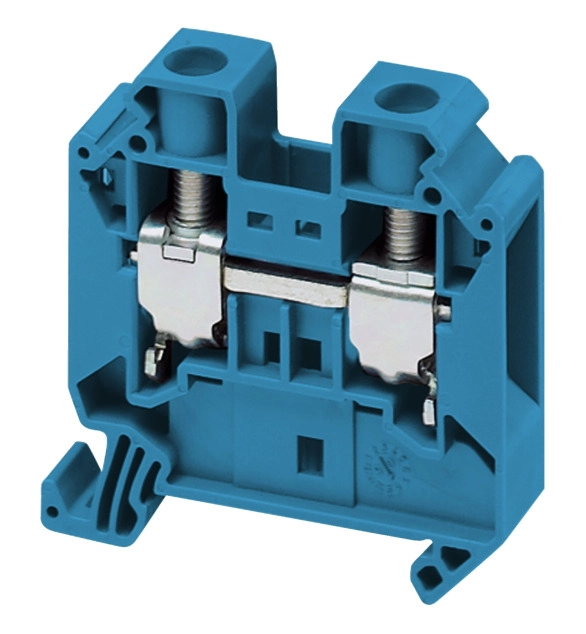

Клема редова синя 16кв.мм. NSYTRV162BL

  • Brand
    Schneider Electric
  • Mounting method
    EV005503
  • Connectable conductor cross section solid-core
    1.5
  • Number of levels
    1
  • Type of electrical connection 1
    EV000415
  • Internally connected stages
    FALSE
  • Inflammability class of insulation material according to with UL94
    EV004429
  • Material insulation body
    EV000403
  • Connectable conductor cross section multi-wired
    1.5
  • Height
    55
  • Colour
    EV000080
  • Rated voltage
    1000
  • Type of electrical connection 2
    EV000415
  • Closing plate required
    TRUE
  • Explosion-tested version 'Ex e'
    TRUE
  • Operating temperature
    -40
  • Number of clamp positions per level
    2
  • Connectable conductor cross section fine-strand without cable end sleeve
    0.2
  • Connectable conductor cross section fine-strand with cable end sleeve
    1.5
  • Rated current In
    76
  • Width
    12.2
  • Depth
    55.5

Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 16 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/UL and 1000V conforming to EN/IEC 60947-7-1. The rated current is 76A conforming to EN/IEC 60947-7-1 and 85A conforming to CSA/UL. It has blue, surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva Enclosure, PrismaSeT XS, Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, GL, DNV).
