СКУ: NSYTRV42GN

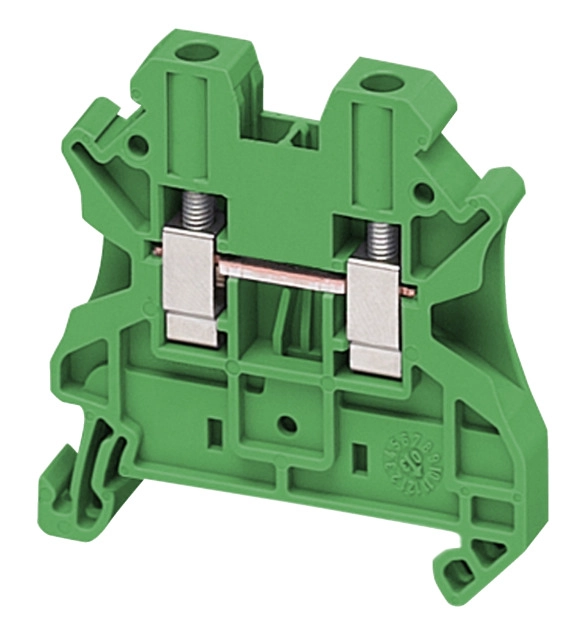

Клема Linergy 4 мм? 32A, зелена
-
Brand
Schneider Electric
-
Mounting method
EV005503
-
Number of levels
1
-
Type of electrical connection 1
EV000415
-
Internally connected stages
FALSE
-
Inflammability class of insulation material according to with UL94
EV004429
-
Material insulation body
EV000403
-
Colour
EV000235
-
Width
6.2
-
Rated voltage
1000
-
Type of electrical connection 2
EV000415
-
Closing plate required
TRUE
-
Connectable conductor cross section fine-strand with cable end sleeve
0.2
-
Explosion-tested version 'Ex e'
TRUE
-
Operating temperature
-40
-
Number of clamp positions per level
2
-
Rated current In
32
-
Connectable conductor cross section solid-core
0.14
-
Connectable conductor cross section multi-wired
0.14
-
Connectable conductor cross section fine-strand without cable end sleeve
0.14
-
Depth
47.7
-
Height
47.5
Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 4 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/UL and 1000V conforming to EN/IEC 60947-7-1. The rated current is 32A conforming to EN/IEC 60947-7-1 and 30A conforming to CSA/UL. It has green surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva Enclosure, PrismaSeT XS, Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, GL, DNV).
