СКУ: NSYTRV162SF
Клема Linergy 16мм? 10A, черна
-
Brand
Schneider Electric
-
Colour
EV000206
-
Mounting method
EV005503
-
Rated voltage
500
-
Number of levels
1
-
Type of electrical connection 1
EV000415
-
Inflammability class of insulation material according to with UL94
EV004429
-
Closing plate required
FALSE
-
Material insulation body
EV000403
-
Rated current In
10
-
Depth
62
-
Width
12
-
Type of electrical connection 2
EV000415
-
Operating temperature
-40
-
Connectable conductor cross section fine-strand with cable end sleeve
1.5
-
Type of fuse insert
EV005501
-
Type of indication element for defect indication
EV000494
-
Connectable conductor cross section solid-core
0.5
-
Connectable conductor cross section multi-wired
0.5
-
Connectable conductor cross section fine-strand without cable end sleeve
0.08
-
Type of fuse holder
EV001790
-
Height
57.2

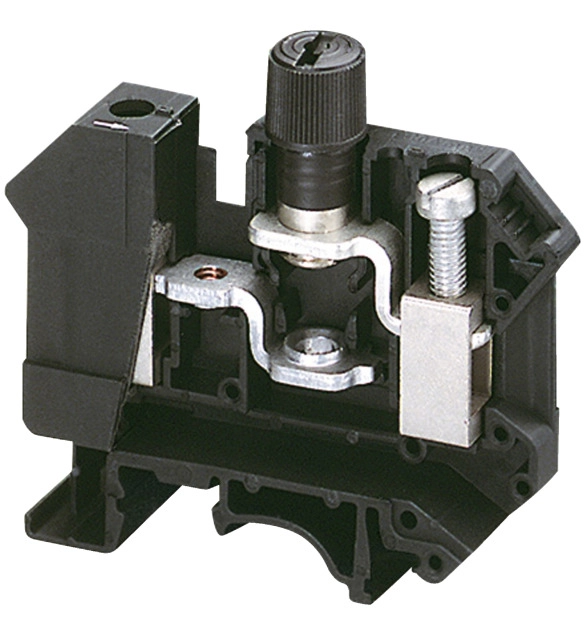

Linergy TR is terminal block for Linergy. It belongs to linergy fixed carrier terminal block with 16 mm² nominal cross section. The rated operational voltage is 300V conforming to CSA/cURus and 500V conforming to EN/IEC 60947-7-1. The rated current is 10A conforming to EN/IEC 60947-7-1 and 20A conforming to CSA/UL. It has black surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva Enclosure, PrismaSeT XS, Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, DNV).
