СКУ: TMC4AQ2

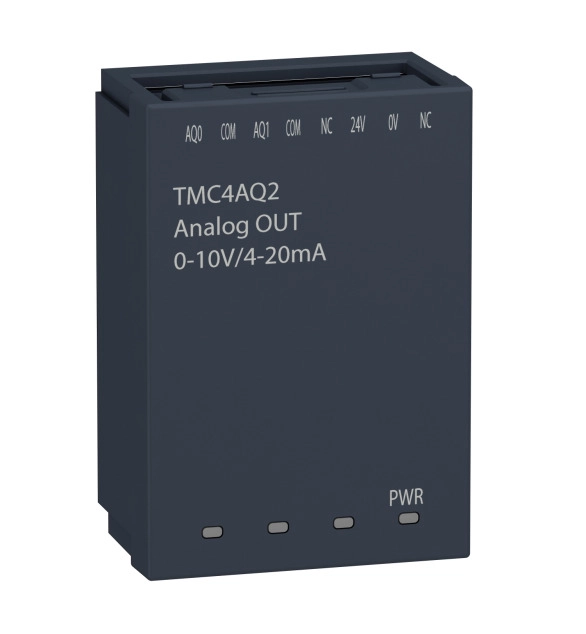

Касета CARTRIDGE M241-4 ANALOG OUTPUTS
-
Brand
Schneider Electric
-
Type of electric connection
EV000415
-
SIL according to IEC 61508
EV000494
-
Performance level according to EN ISO 13849-1
EV000494
-
Explosion safety category for dust
EV000494
-
Explosion safety category for gas
EV000494
-
Appendant operation agent (Ex ia)
FALSE
-
Appendant operation agent (Ex ib)
FALSE
-
Suitable for safety functions
FALSE
-
Height
50
-
Analogue inputs configurable
FALSE
-
Analogue outputs configurable
FALSE
-
Width
34
-
Input, thermocouple
FALSE
-
Input signal, configurable
FALSE
-
Input, resistor
FALSE
-
Input, resistance thermometer
FALSE
-
Input, current
FALSE
-
Input, voltage
FALSE
-
Output, voltage
TRUE
-
Output signal configurable
FALSE
-
Output, current
TRUE
-
Resolution of the analogue inputs
12
-
Number of analogue outputs
2
-
Resolution of the analogue outputs
16
-
Depth
21
-
Number of analogue inputs
This product is part of the Modicon M241 range, an offer of logic controllers for performance demanding applications. This analogue output cartridge is for Modicon M241 logic controllers. It provides 2 analog inputs (voltage or current) for hoisting load cell with 16bit resolution. This analogue output cartridge is for Modicon M241 logic controllers. It provides 2 analogue current outputs with 16bit resolution. It measures 34mm (Width) x 21mm (Depth) x 50mm (Height) and it weighs 0.055kg. It is certified by CE, IACS E10, RCM, CSA, cULus, and Standards ANSI/ISA, CSA C22.2, EN/IEC 61131-2, UL 1604, UL 508, Marine (LR, ABS, DNV, GL). It is compatible with the TM241 type of controllers. It is sold in a 1-piece package. It installs in a specific slot on controller, when removing the cartridge cover. Achieve benchmark performance while increasing profitability with Modicon M221 through intuitive machine programming with EcoStruxure Machine Expert Basic.
