СКУ: A9L65102

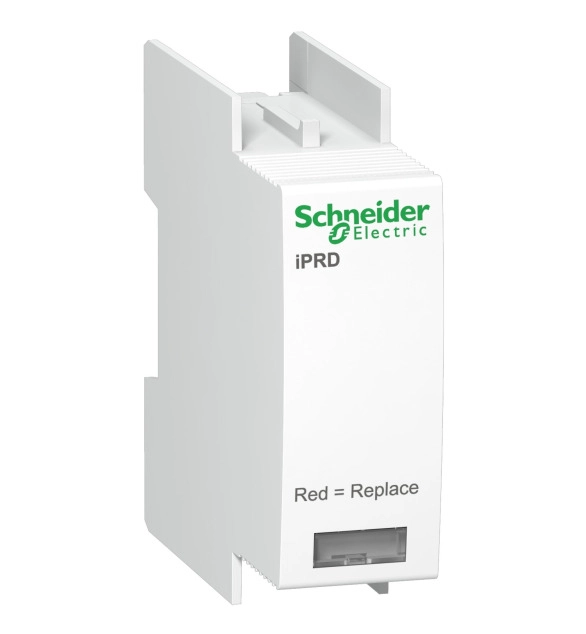

Касета C65-350 за катоден отводител iPRD
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Integrated short-circuit protection
FALSE
-
Leakage-current free
FALSE
-
System configuration DC
FALSE
-
System configuration IT
FALSE
-
Voltage protection level
1.5
-
System configuration TN-S
FALSE
-
Signalling at the device
EV000428
-
System configuration TN-C-S
FALSE
-
System configuration other
FALSE
-
Integrated backup fuse
FALSE
-
Category type 2
TRUE
-
Max. continuous voltage AC
350
-
System configuration TN-C
FALSE
-
Nominal discharge surge current (8/20)
20
-
System configuration TN
TRUE
-
System configuration TT
TRUE
-
Mounting method
EV007107
-
With remote signalling contact
FALSE
-
Max. discharge surge current (8/20)
65
-
Construction size
EV006931
-
Nominal voltage AC
350
This Acti9 product is a cartridge C65-350 for surge arrester iPRD. The Imax maximum discharge current is 65kA. The In nominal discharge current is 20kA. This product is compatible with TT and TN earthing system. This Type 2 device autoprotected by integrated circuit-breaker is recommended for moderate risk level in incoming panel board. The Uc maximum continuous operating voltage is 350VAC. The Up Voltage protection level is 1.5kV. It can be plugged into a surge protecting device module. Its width is 57 mm pitches of 9mm. The product color is white (RAL9003). The dimensions are (W) 18mm x (H) 57mm x (D) 56mm. According to IEC 60529 standard, the degree of protection is IP20 or IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. It is compliant with IEC 61643-1 and EN 61643-11 standards.
