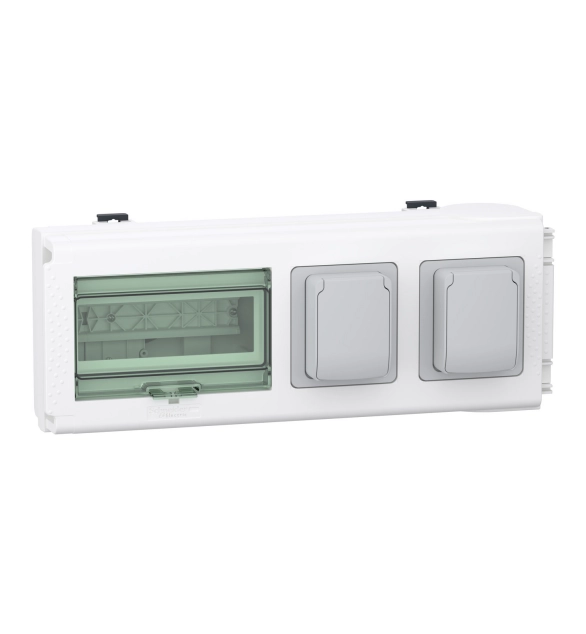

Изходяща кутия 32A с 2 контакта

This is a 4 poles tap off unit with power sockets for Canalis KN busbar trunking with plug-in outlets. It is used for the supply of portable loads equipped with household or industrial plugs (garage, maintenance workshop, laboratory, battery charging room, etc). This tap off unit accepts up to 8 devices of 18mm width (not provided). The rated operational current is 32A. The rated operational voltage is from 230VAC to 500VAC 50/60Hz depending on protective device. Mounting by plug-in with fixed polarity. The tap-off unit polarity is 3L+N+PE, disconnection by drawing out. It is equipped with 2 NF power sockets (10/16A, 2P+T). Tap-off unit cover can be lead sealed to prevent circuit breaker switching by unauthorised persons. It is suitable for TT, IT, TN-S and TN-C earthing system. The colour is white RAL 9001. Blanking plate is provided, MCB circuit breaker have to be ordered separately. It provides IP55 protection degree conforming to EN/IEC 60529. It provides IK08 mechanical impact degree conforming to EN/IEC 62262. It is compliant with IEC 61439-1 and IEC 61439-6. It is compliant with Schneider Electric Environmental Data Program (RoHS, REACh, Product Environmental Profile, End of Life Instructions).
