СКУ: KNB16CM2H
Изходяща кутия 16A с с60N
-
Brand
Schneider Electric
-
Colour
EV000202
-
Number of poles
4
-
Degree of protection (IP)
EV006420
-
RAL-number
9001
-
Width
70
-
Number of conductors (without earthing)
4
-
Type of socket outlets
EV000154
-
With adjustment
FALSE
-
Phase selection
TRUE
-
Rated voltage at AC 50 Hz
230
-
Rated current at AC 50 Hz
16
-
Branch off type
EV008941
-
Height
172
-
Length
79
-
Protection
EV000646
-
Number of other socket outlets
-
Number of CEE socket outlets
-
Number of NEMA socket outlets

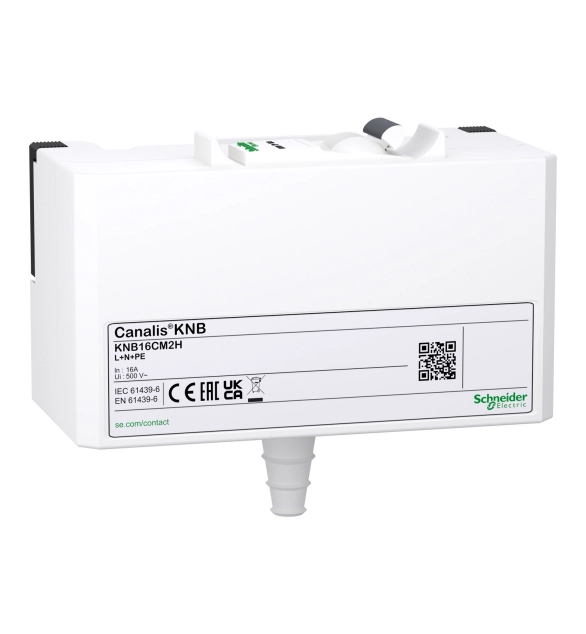

This is a single phase tap off unit for Canalis KN busbar trunking with plug-in outlets. It is used for rapid connection of loads or secondary lines in compliance with installation standards IEC 60364 and regulations concerning TT, TNS and TNC earthing systems. It is equipped with a phase selection system (L1, L2 or L3 + N + PE). The rated operational current is 16A. The rated operational voltage is from 230VAC to 500VAC 50/60Hz depending on protective device. It is equipped with a single pole iC60 circuit breaker curve H. The tap-off unit polarity is L+N+PE, disconnection by drawing out. It is suitable for TT, TN-S and TN-C earthing system. The colour is white RAL 9001. Blanking plate and MCB circuit breaker are provided. It provides IP41 protection degree conforming to EN/IEC 60529. It provides IK08 mechanical impact degree conforming to EN/IEC 62262. It is compliant with IEC 61439-1 and IEC 61439-6. It is compliant with Schneider Electric Environmental Data Program (RoHS, REACh, Product Environmental Profile, End of Life Instructions).
