СКУ: C6345E630
Изключвателно устройство NSX630 AC 4P4D 630A 5.3 E MicroLogic
-
Brand
Schneider Electric
-
Number of poles
3
-
Type of motor protection
EV014005
-
Voltage type for actuating
EV009206
-
Short-circuit release function
EV003977
-
With ground fault protection function
FALSE
-
Overload release current setting
250
-
Rated permanent current Iu
570
-
Initial value of the undelayed short-circuit release - setting range
6900
-
End value adjustment range undelayed short-circuit release
6900

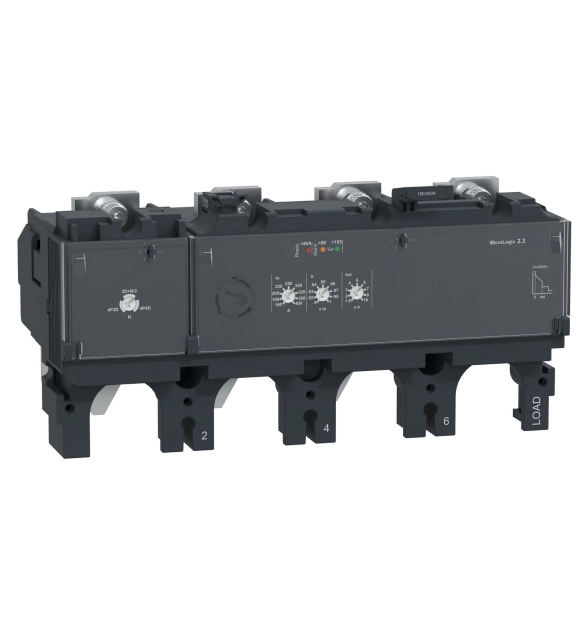

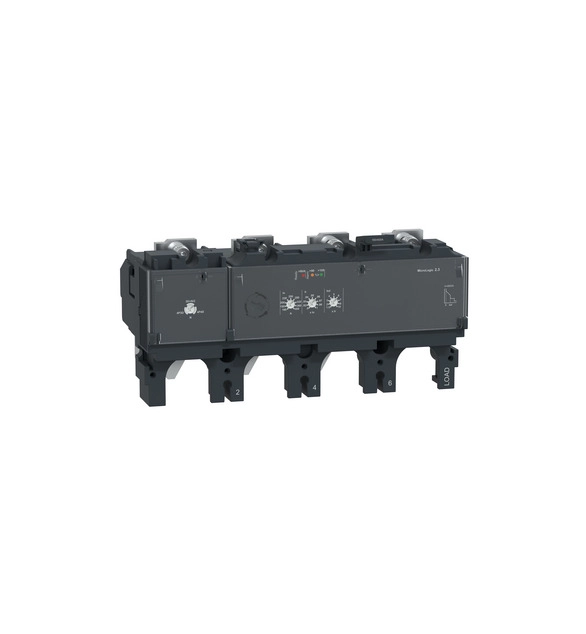

This MicroLogic 2.3 is a 4 poles 4d electronic trip unit used on ComPacT NSX 630 circuit breakers. This 630A rating electronic trip unit is an optimum choice for all standard and specific applications. It embeds an adjustable long time protection against overloads. It provides also an adjustable short-time protection and a fixed instantaneous protection against short-circuits. MicroLogic 2.3 indicates overloads with Alarm LEDs. The green Ready LED flashes if the circuit breaker is ready to trip. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.
