СКУ: C6336E630

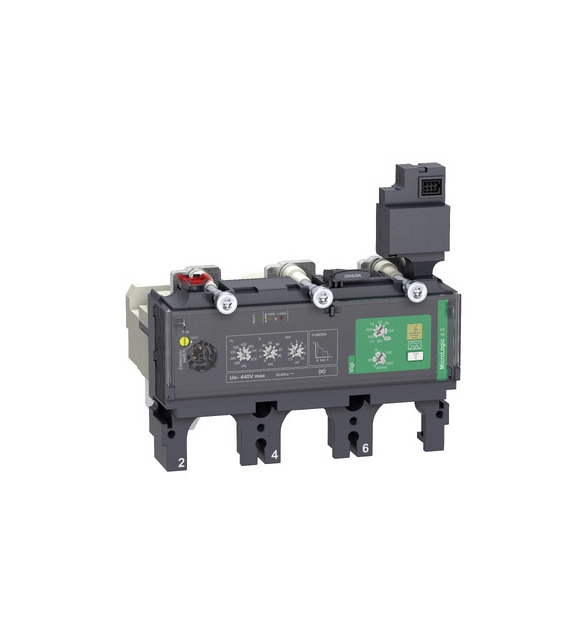

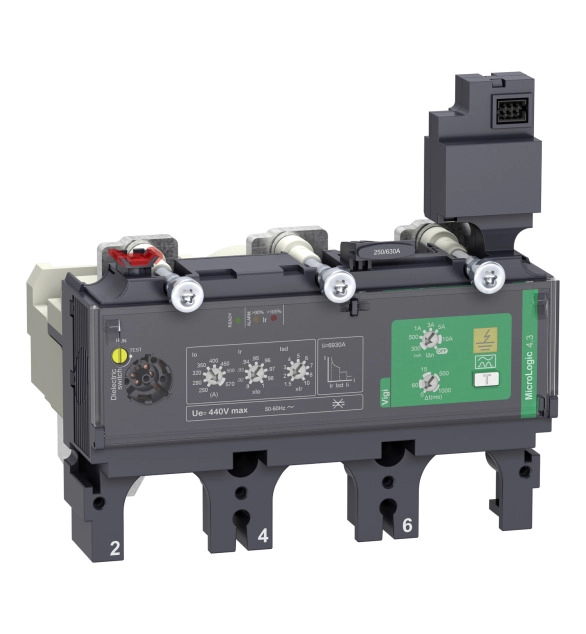

Изключвателно устройство NSX630 AC 3P3D 630A 6.3 E MicroLogic

  • Brand
    Schneider Electric
  • Number of poles
    4
  • Rated control supply voltage Us at DC
    24
  • Type of motor protection
    EV014005
  • Voltage type for actuating
    EV009206
  • Short-circuit release function
    EV003977
  • With ground fault protection function
    FALSE
  • Initial value of the undelayed short-circuit release - setting range
    855
  • End value adjustment range undelayed short-circuit release
    6270
  • Overload release current setting
    250
  • Rated permanent current Iu
    570

ComPacT NSX630NA DC is a complete 4 poles switch disconnerctor. It's used to control and isolate electrical distribution circuits. It requires an upstream protection. The operational current is 630A at 750VDC for DC-22A utilization categories. The operational voltage is 750VDC. It comes with a variety of optional functions and accessories common with ComPacT NSX circuit breakers. The dimension is 185mm x 255mm x 110mm (H x W x D). It is compliant with international standards (IEC 60947), CCC and EAC specifications.
