СКУ: C4045E400

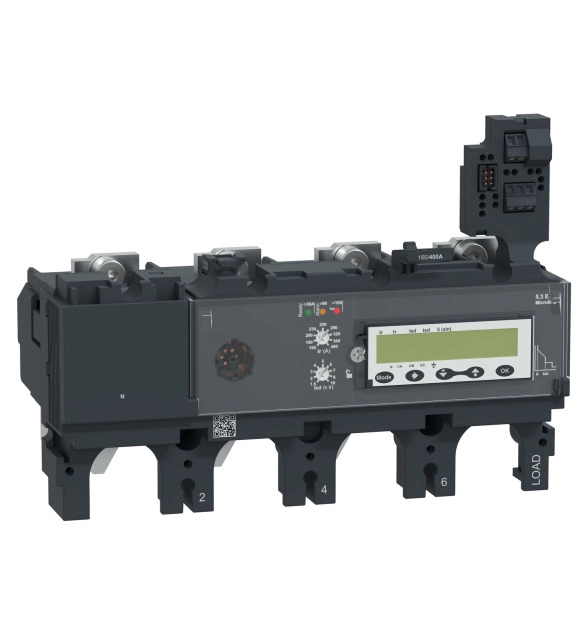

Изключвателно устройство NSX400 AC 4P4D 400A 5.3 E MicroLogic
-
Brand
Schneider Electric
-
Number of poles
4
-
Rated permanent current Iu
400
-
Rated control supply voltage Us at DC
24
-
Type of motor protection
EV014005
-
Voltage type for actuating
EV009206
-
Short-circuit release function
EV003977
-
With ground fault protection function
FALSE
-
Initial value of the undelayed short-circuit release - setting range
600
-
End value adjustment range undelayed short-circuit release
4800
-
Overload release current setting
160
This MicroLogic 5.3 E (Energy) is a 4 poles 4d electronic trip unit used on ComPacT NSX 400/630 circuit breakers. This 400A rating electronic trip unit is an optimum choice for all standard and specific applications. It embeds adjustable long time protection against overloads. It provides also adjustable short-time protection and instantaneous protection against short-circuits. MicroLogic 5.3 E indicates overloads with Alarm LEDs. The green Ready LED flashes if the circuit breaker is ready to trip. MicroLogic 5.3 E is equipped with a display module that gives energy measurement and allows fine adjustment settings. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.
