СКУ: C2536E250

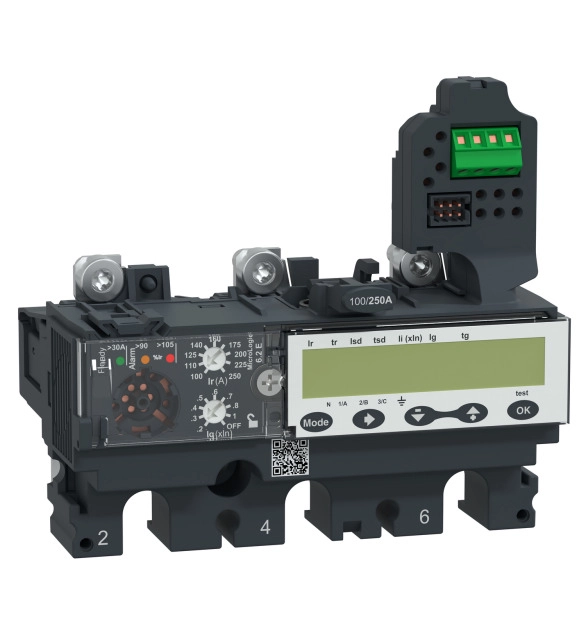

Изключвателно устройство NSX250 AC 3P3D 250A 6.2E MicroLogic
-
Brand
Schneider Electric
-
Number of poles
3
-
Rated permanent current Iu
250
-
Rated control supply voltage Us at DC
24
-
Type of motor protection
EV014005
-
Voltage type for actuating
EV009206
-
With ground fault protection function
TRUE
-
Short-circuit release function
EV003977
-
Overload release current setting
100
-
End value adjustment range undelayed short-circuit release
3000
-
Initial value of the undelayed short-circuit release - setting range
375
This MicroLogic 6.2 E (Energy) is a 3 poles 3d electronic trip unit used on ComPacT NSX 250 circuit breakers. This 250A rating electronic trip unit is an optimum choice for all standard and specific applications. It embeds adjustable long time protection against overloads. It provides also adjustable short-time protection and instantaneous protection against short-circuits. It has an additional and adjustable ground fault protection. MicroLogic 6.2 E indicates overloads with Alarm LEDs. The green Ready LED flashes if the circuit breaker is ready to trip. MicroLogic 6.2 E is equipped with a display module that gives energy measurement and allows fine adjustment settings. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.
