СКУ: C2535Z250
Изключвателно устройство NSX250 AC 3P3D 250A 5.2 AZ
-
Brand
Schneider Electric
-
Number of poles
3
-
Rated permanent current Iu
250
-
Rated control supply voltage Us at DC
24
-
Type of motor protection
EV014005
-
Voltage type for actuating
EV009206
-
Short-circuit release function
EV003977
-
With ground fault protection function
FALSE
-
Overload release current setting
100
-
End value adjustment range undelayed short-circuit release
3000
-
Initial value of the undelayed short-circuit release - setting range
375

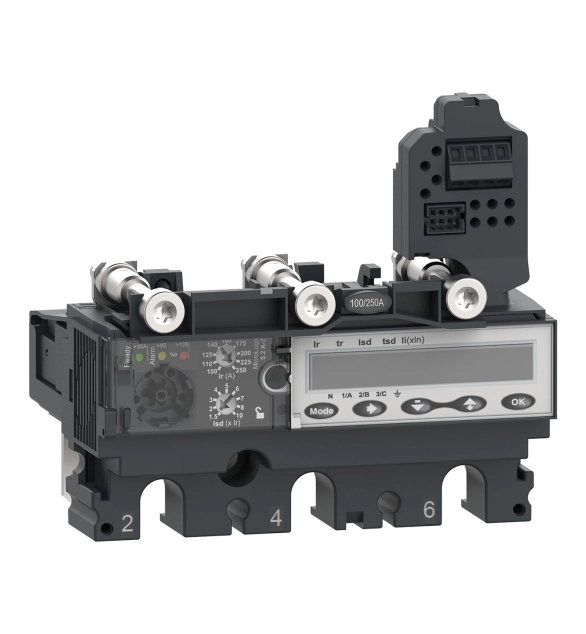

This MicroLogic 5.2 A-Z is a 3 poles 3d electronic trip unit used on ComPacT NSX 250 circuit breakers. This 250A rating electronic trip unit is used on specific 16 Hz 2/3 distribution systems for railroad applications. It embeds adjustable long time protection against overloads. It provides also adjustable short-time protection and instantaneous protection against short-circuits. MicroLogic 5.2 A-Z indicates overloads with Alarm LEDs. The green Ready LED flashes if the circuit breaker is ready to trip. MicroLogic 5.2 A-Z is equipped with a display module that gives current measurement and allows fine adjustment settings. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.
