СКУ: C1634A160
Изключвателно устройство NSX160 AC 3P3D 160A 4.2AL за NSX160-250
-
Brand
Schneider Electric
-
Number of poles
3
-
Rated permanent current Iu
160
-
Type of motor protection
EV014005
-
Voltage type for actuating
EV009206
-
Short-circuit release function
EV003977
-
With ground fault protection function
FALSE
-
End value adjustment range undelayed short-circuit release
2400
-
Overload release current setting
63
-
Initial value of the undelayed short-circuit release - setting range
2400

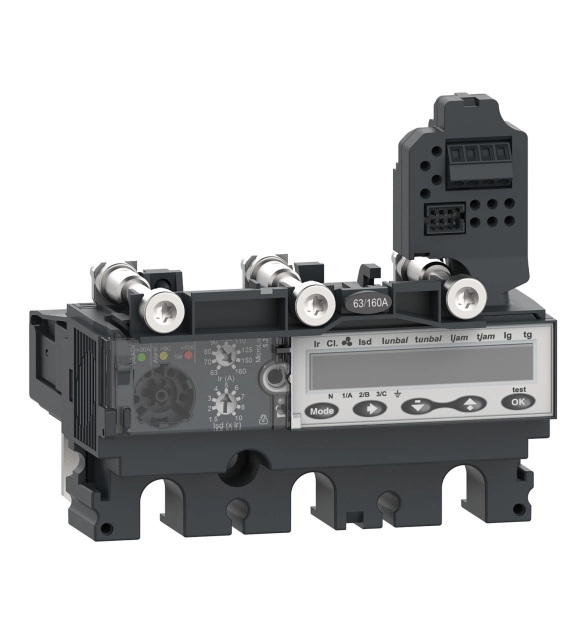

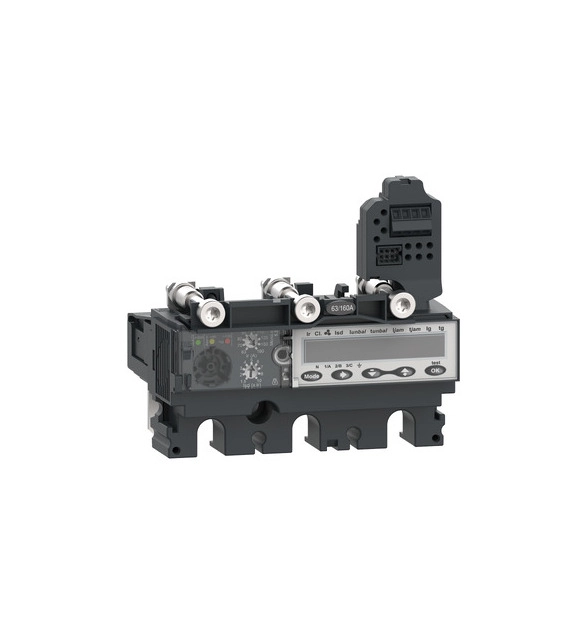

This MicroLogic 4.2 is a 3 poles 3d electronic trip unit used on ComPacT NSX 160/250 circuit breakers. This 160A rating electronic trip unit is an optimum choice for all standard and specific applications. It embeds adjustable long time protection against overloads. It provides also an adjustable short-time protection and a fixed instantaneous protection against short-circuits. MicroLogic 4.2 Vigi trip unit offers an integrated adjustable earth-leakage protection. MicroLogic 4.2 indicates overloads with Alarm LEDs. The green Ready LED flashes if the circuit breaker is ready to trip. An earth leakage pre-alarm can be remotely available by installing the optional SDx module (LV429532). This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.
