СКУ: C104TM016

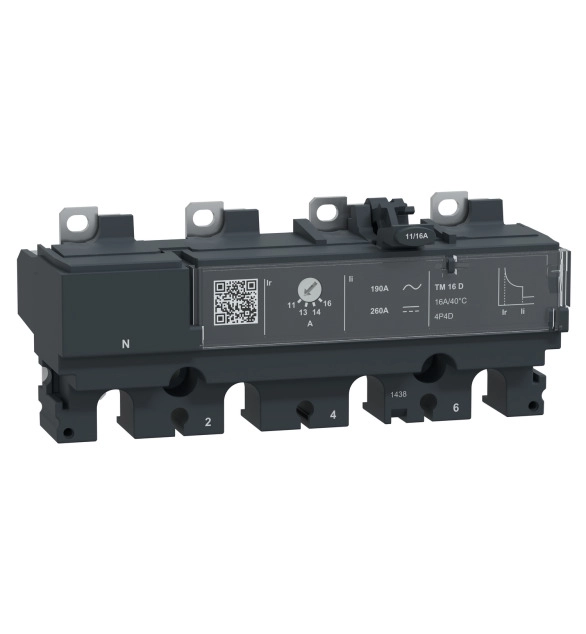

Изключвателно устройство NSX100 AC 4P4D 16A TMD
-
Brand
Schneider Electric
-
Number of poles
4
-
Voltage type for actuating
EV009206
-
With ground fault protection function
FALSE
-
Short-circuit release function
EV003978
-
Type of motor protection
EV001281
-
Rated permanent current Iu
16
-
Initial value of the undelayed short-circuit release - setting range
63
-
End value adjustment range undelayed short-circuit release
63
-
Overload release current setting
11.2
This MicroLogic 2.2 is a 3 poles 3d electronic trip unit used on ComPacT NSX 160/250 circuit breakers. This 160A rating electronic trip unit is an optimum choice for all standard and specific applications. It embeds an adjustable long time protection against overloads. It provides also an adjustable short-time protection and a fixed instantaneous protection against short-circuits. MicroLogic 2.2 indicates overloads with Alarm LEDs. The green Ready LED flashes if the circuit breaker is ready to trip. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.
