СКУ: C103MA025
Изключвателно устройство NSX100 AC 3P3D 25A MA
-
Brand
Schneider Electric
-
Number of poles
3
-
Voltage type for actuating
EV009206
-
With ground fault protection function
FALSE
-
Short-circuit release function
EV003978
-
Rated permanent current Iu
6.3
-
Type of motor protection
EV000154
-
Initial value of the undelayed short-circuit release - setting range
37.8
-
End value adjustment range undelayed short-circuit release
88.2

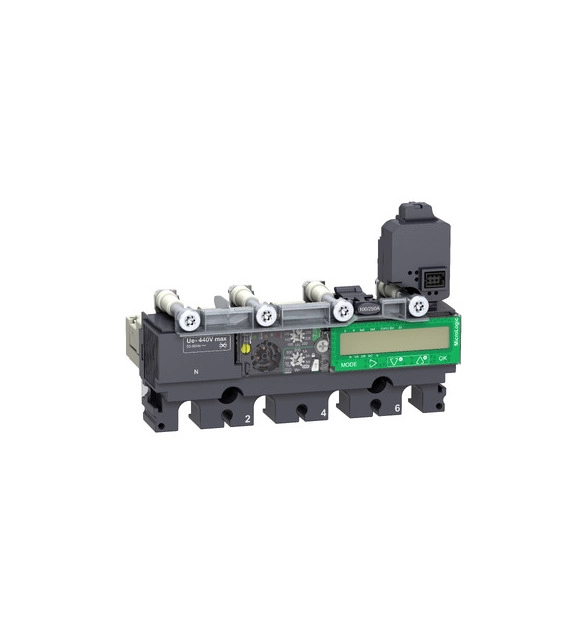

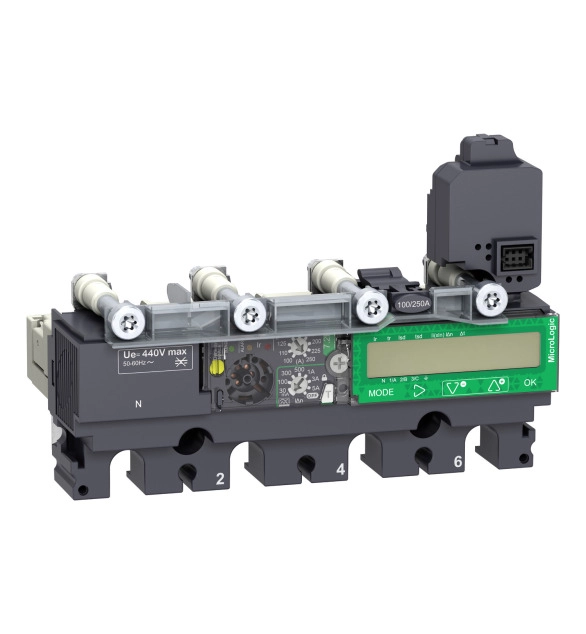

This MicroLogic 5.2 E (Energy) is a 4 poles 4d electronic trip unit used on ComPacT NSX 100/160/250 circuit breakers. This 100A rating electronic trip unit is an optimum choice for all standard and specific applications. It embeds adjustable long time protection against overloads. It provides also adjustable short-time protection and instantaneous protection against short-circuits. MicroLogic 5.2 E indicates overloads with Alarm LEDs. The green Ready LED flashes if the circuit breaker is ready to trip. MicroLogic 5.2 E is equipped with a display module that gives energy measurement and allows fine adjustment settings. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.
