СКУ: C6337A570

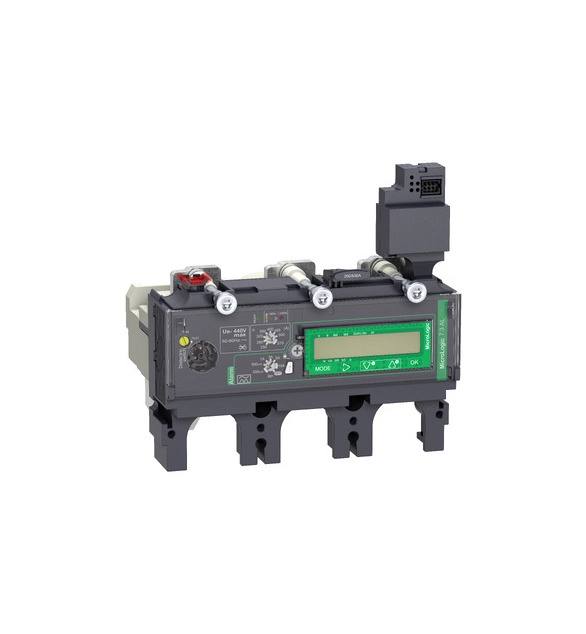

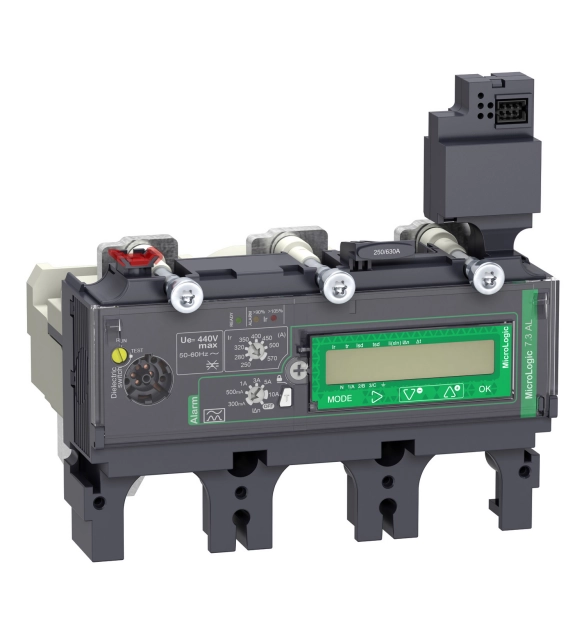

изключвателно устройство MicroLogic Vigi 7.3E AL, ComPacT NSX630, 3 полюса, основни защити, аларма за утечка към земя, електромер, 570A
-
Brand
Schneider Electric
-
Number of poles
3
-
Rated permanent current Iu
630
-
Rated control supply voltage Us at DC
24
-
Type of motor protection
EV014005
-
Voltage type for actuating
EV009206
-
Short-circuit release function
EV003977
-
With ground fault protection function
FALSE
-
Overload release current setting
250
-
Initial value of the undelayed short-circuit release - setting range
945
-
End value adjustment range undelayed short-circuit release
6930
ComPacT NSX630NA DC is a complete 4 poles switch disconnerctor. It's used to control and isolate electrical distribution circuits. It requires an upstream protection. The operational current is 630A at 750VDC for DC-22A utilization categories. The operational voltage is 750VDC. It comes with a variety of optional functions and accessories common with ComPacT NSX circuit breakers. The dimension is 185mm x 255mm x 110mm (H x W x D). It is compliant with international standards (IEC 60947), CCC and EAC specifications.
