iPRD-DC 40r 800PV Катоден отводител - 2P - 840VDC - с дистанционна комуникация | Spark & Co
  • 3D
|

СКУ: A9L40271

iPRD-DC 40r 800PV Катоден отводител - 2P - 840VDC - с дистанционна комуникация

  • Brand
    Schneider Electric
  • Degree of protection (IP)
    EV006405
  • Integrated short-circuit protection
    FALSE
  • Leakage-current free
    FALSE
  • System configuration TN
    FALSE
  • System configuration IT
    FALSE
  • System configuration TT
    FALSE
  • System configuration TN-S
    FALSE
  • Signalling at the device
    EV000428
  • Max. conductor cross section solid (solid, stranded)
    35
  • Max. conductor cross section flexible (fine-strand)
    35
  • System configuration TN-C-S
    FALSE
  • Mounting method
    EV005503
  • System configuration other
    FALSE
  • With remote signalling contact
    TRUE
  • Integrated backup fuse
    FALSE
  • Category type 2
    TRUE
  • System configuration TN-C
    FALSE
  • Max. discharge surge current (8/20)
    40
  • Nominal discharge surge current (8/20)
    15
  • Number of conductors (without earthing)
    2
  • Construction size
    EV007000
  • System configuration DC
    TRUE
  • Voltage protection level L-N
    3
  • Voltage protection level
    3
  • Max. continuous voltage DC
    800
  • Nominal voltage DC
    800
  • Max. PV-voltage
    800
  • Voltage protection level N-PE
    3

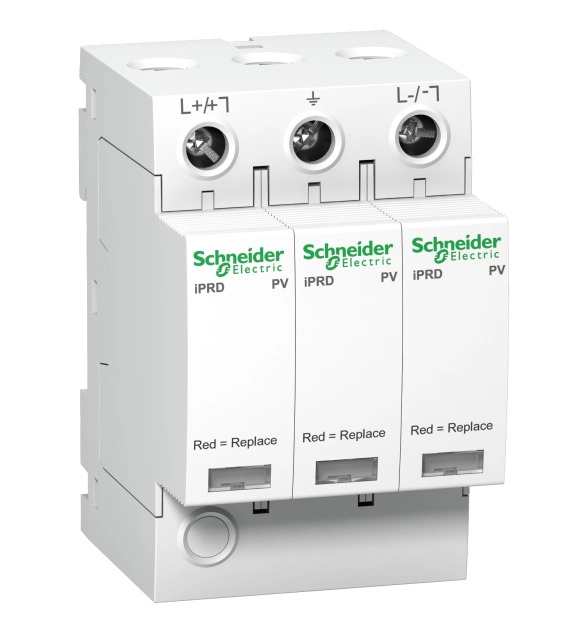

This Acti9 iPRD-DC 40r direct current surge arresters protects 2P photovoltaic installations. It allows quick replacement of damaged cartridges. The Itotal discharge current is 40kA. The In nominal discharge current is 15kA. This Type 2 device is recommended to protect against indirect lightning strikes. The surge arresters with r indication have remote transfer of the information Cartridge to be replaced. It can be turned over to allow the phase/neutral/earth cables to enter through either the top or the bottom. The Uc maximum continuous operating voltage is 800VDC. The Up protection level is 3kV in differential mode and in common mode. The Ue rated operational voltage is 800VDC +/- 10%. The product colour is white (RAL9003). The dimensions are (W) 54mm x (H) 85mm x (D) 69mm. The width in 9mm pitches is 4. The weight is 400g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product complies with EN/IEC 61643-31 and UTE C 61470-51 standards.
