СКУ: NSYTBS191610HT

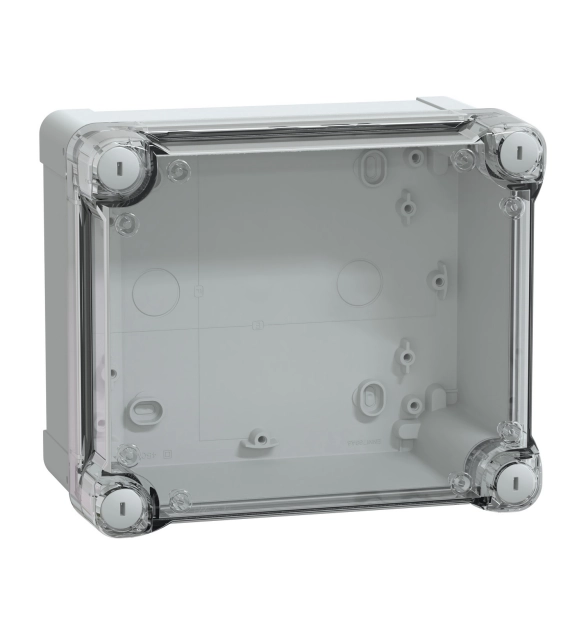

Индустриална кутия TBS 192x164x105 с прозрачен капак
-
Brand
Schneider Electric
-
With mounting plate
FALSE
-
Type of cover
EV001012
-
Extension possible
FALSE
-
Material housing
EV000139
-
Mounting method
EV000384
-
With lock
FALSE
-
RAL-number
7035
-
Transparent cover/door
TRUE
-
Cover model
EV000116
-
Colour
EV000270
-
Surface protection
EV006034
-
Depth
105
-
Degree of protection (NEMA)
EV014040
-
Degree of protection (IP)
EV006422
-
Circuit integrity
EV000494
-
Type of door
EV000494
-
Protection class
EV000583
-
Impact strength
EV006814
-
Width
164
-
Height
192
-
Suitable for outdoor use
TRUE
-
Internal depth
100
PanelSeT SM is a multi-purpose steel compact monobloc floor-standing enclosure designed for use in harsh environments. It has a nominal height, width and depth of 2000mm, 1600mm and 500mm respectively. The enclosure is made in grey color (RAL7035) with an epoxy-polyester powder surface finish and the handle is made in black color (RAL9005) It consists of one body, two plain doors, one cable gland plate with one entry, one plain mounting plate and four mounting plate brackets. The doors can be opened up to 120°, allowing easy access to the equipment inside. The enclosure has a four-point lock with a handle with 5mm double-bar insert. The doors, the mounting plate and the mounting plate brackets can be removed for maintenance purposes. It is certified by BV and UL and marine certified by DNV. This enclosure has IP55 ingress protection rating against dust and water and IK10 impact protectoin rating. It conforms to IEC 62208, IK10 (IEC62262) and IP55 (IEC60529) It has a single entry point for cables The enclosure is accessible from the front
