СКУ: NSYSBM15208

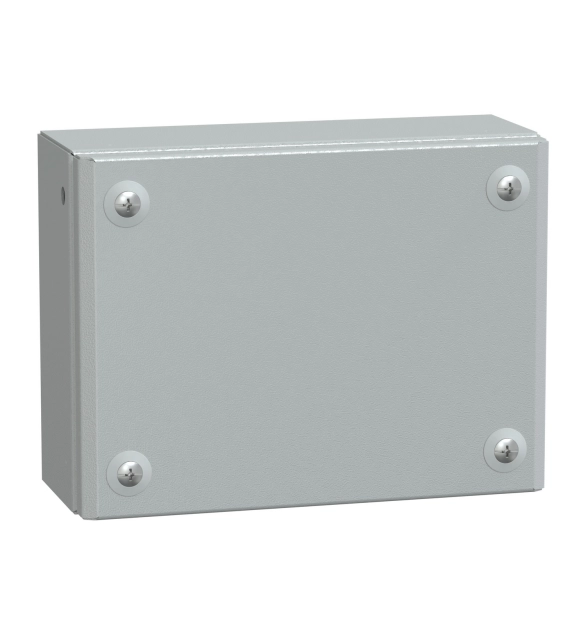

Индустриална метална кутия, с врата H150xW200xD80 IP66 IK10 RAL 7035
-
Brand
Schneider Electric
-
With mounting plate
FALSE
-
EMC-version
FALSE
-
RAL-number
7035
-
Colour
EV000270
-
Surface finishing
EV008895
-
Material
EV000179
-
Height
150
-
With glazed door
FALSE
-
Number of doors
1
-
With backside door
FALSE
-
Material quality
EV000154
-
Degree of protection (NEMA)
EV014040
-
Degree of protection (IP)
EV006422
-
Width
200
-
Connectable
FALSE
-
Depth
80
-
Detached
FALSE
-
Suitable for metrical mounting
TRUE
-
Pitched roof
FALSE
-
Intermediate mounting
FALSE
-
Corner model
FALSE
-
Mounting plate depth-adjustable
FALSE
-
With ventilation door
FALSE
-
Floor standing wall model
FALSE
-
Suitable for wall mounting
TRUE
-
Impact strength
EV008784
-
Suitable for outdoor set-up
TRUE
-
Suitable for wall built-in
TRUE
-
Pole fastening
TRUE
-
Max. permissible load of the enclosure according to IEC 62208
50
-
Max. permissible load of the mounting plate according to IEC 62208
200
-
Number of locks
PanelSeT SBM steel industrial box for a multi-purpose application It is designed for use in harsh environments, it has an IK10 rating (IEC62262) and an IP66 rating (IEC60529) for high resistance to dust and water The box has a nominal height, width and depth of 150mm, 200mm and 80mm respectively It is made of sheet steel in grey color (RAL7035) with a polyester powder surface finish It consists of 4 cover screws, a cover and a body with a captive screw PZ2 outside the sealed area The cover can be removed for maintenance purposes The net weight of the enclosure is 1,312kg It meets the standards of IEC 62208 and has an ambient air temperature for storage of -35-60 °C and for operation of -35-80 °C Made sheet of steel with polyester powder finish. Protection IP 66, IK10.
