Индустриална кутия TBS 192x121x87 с прозрачен капак

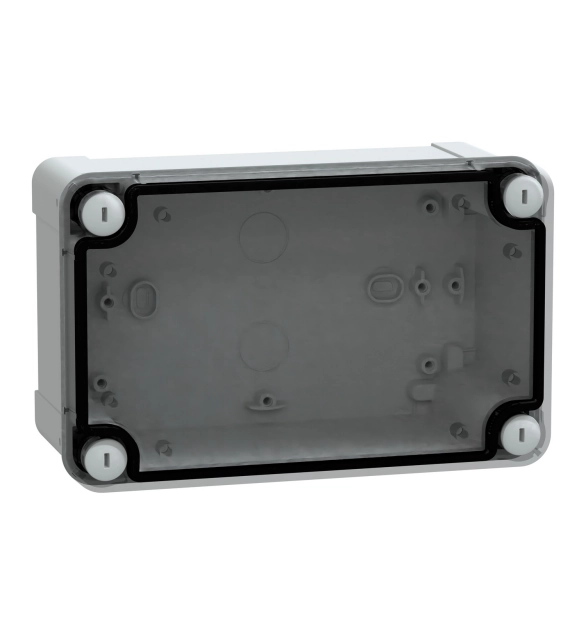

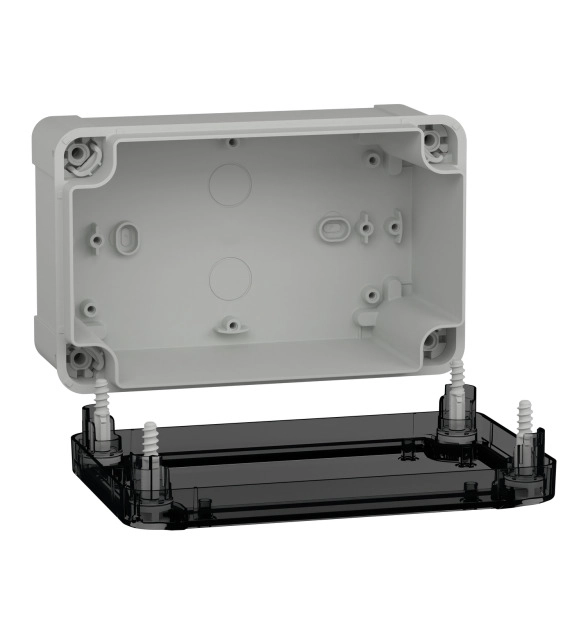

This TBS is a wall-mounted box made of ABS that is suitable for multi-purpose applications The box has a height, width, and depth of 192 mm, 121 mm, and 87 mm, respectively The internal dimensions of the box are 175 mm x 105 mm x 80 mm The box is made of ABS (acrylonitrile butadiene-styrene), which offers resistance to impact, corrosion and low and high temperatures It is made of 45% of post-industrial recycled plastic (ABS) content. The box comes in a grey (RAL 7035) and transparent cover The cover is fixed with captive flat screws located outside sealed area and easily openable with a flat screwdriver The box can be used for junction, shunting, protection of electronical cards, push button support, industrial automation and other applications The box has a class II electrical insulation that prevents electric shocks and allows the building of totally insulated solutions It is also resistant to fire up to 650°C in accordance with IEC 60695-2-11 standard The box offers high protection against dust and water with an IP66 rating (NEMA 4,4X) and is impact resistant with an IK07 rating (IEC 62262) It can be used in ambient air temperature ranging from -25 to 60°C without affecting its performance The box is certified by TÜV and has a class II electrical insulation that prevents electric shocks This electrical box is sold in a set of 2
