СКУ: 81583
Инд. присъединител за стенен монтаж Mureva PK, 63A, 3P+N+E, 400V, IP67
-
Brand
Schneider Electric
-
Type of motor protection
EV014005
-
Voltage type for actuating
EV009206
-
Short-circuit release function
EV003977
-
With ground fault protection function
FALSE
-
Initial value of the undelayed short-circuit release - setting range
12600
-
End value adjustment range undelayed short-circuit release
94500
-
Rated permanent current Iu
6300
-
Overload release current setting
560

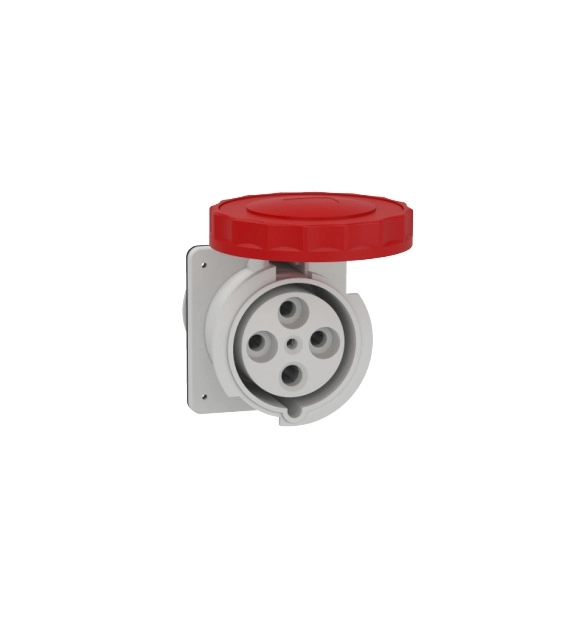

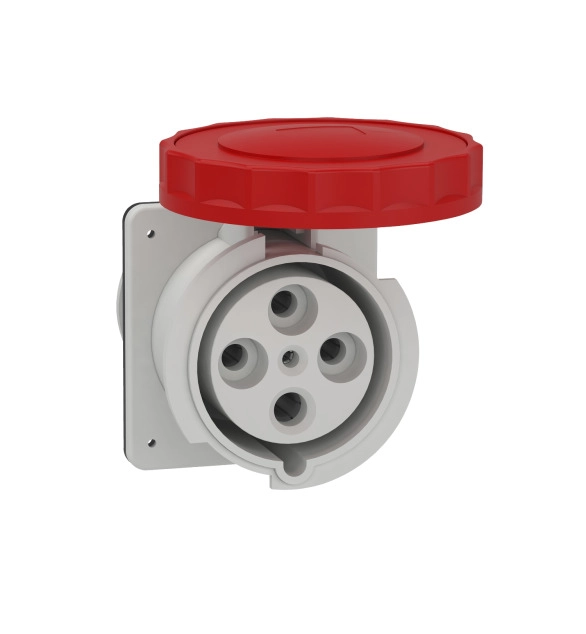

This Mureva PK socket with completely loosened captive screws connection is straight panel mounted. It has 3P+N+E poles, rated current is 63A and the operating voltage is 400VAC. The dimensions of the base plate are (W) 108mm x (H) 107mm. The degree of protection is IP67 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The size of the cable entries in 63A is 17mm to 31mm for 6mm² to 25mm² cables. The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
