СКУ: 81802

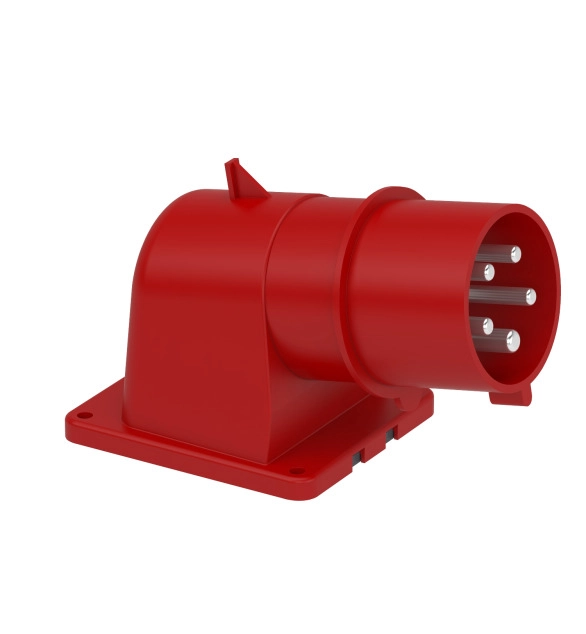

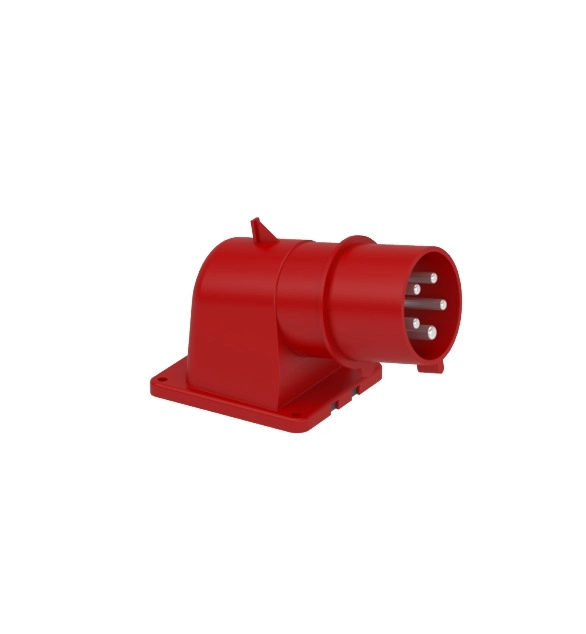

Инд. Присъединител Mureva PK, 16A, 3P+E, 110V, IP44
-
Brand
Schneider Electric
-
Number of poles
3
-
Material
EV000139
-
Rated frequency
50
-
Connection system
EV001008
-
Military model
FALSE
-
Phase inverter
FALSE
-
IEC-amperage
16
-
Angle of plug
EV003873
-
Construction type
EV005469
-
Degree of protection (IP)
EV006418
-
Voltage according to EN 60309-2
EV009018
-
Rated voltage
100
-
Identification colour
EV000234
-
Clock hour position
4
This Mureva PK socket with completely loosened captive screws connection is straight panel mounted. It has 3P+E poles, rated current is 125A and the operating voltage is 500VAC. The dimensions of the base plate are (W) 129mm x (H) 114mm. The degree of protection is IP67 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The size of the cable entries in 125A is 26mm to 48mm for 16mm² to 70mm² cables. The color of the socket is light grey (RAL 7035) with black easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 7h.
