СКУ: A9C33111

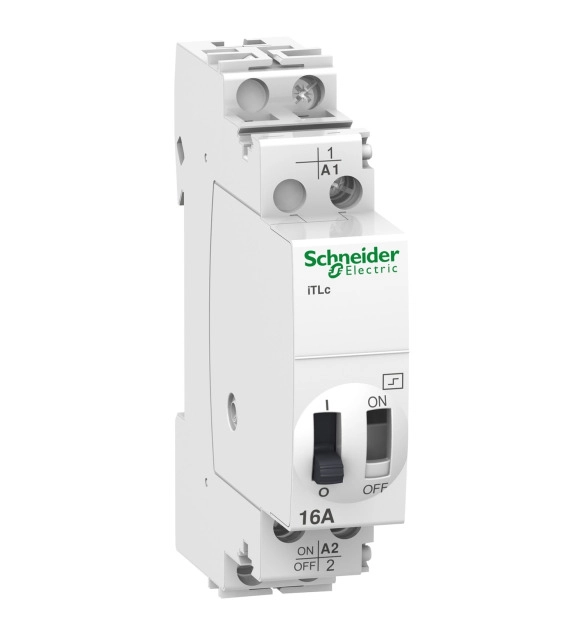

Импулсно реле iTLc - 1P - 1NO - 16A - бобина 24 VAC 50/60Hz-
-
Brand
Schneider Electric
-
Number of contacts as normally open contact
1
-
Width in number of modular spacings
1
-
Mounting method
EV000242
-
Frequency control voltage 1
50
-
Voltage type of supply voltage
EV000460
-
Type of control voltage 1
EV000460
-
Rated switch current
16
-
Suitable for manual operation
TRUE
-
Supply voltage
24
-
Built-in depth
43.5
-
Control voltage 1
24
-
Max. load fluorescent lamp (parallel compensated)
900
-
Max. incandescent lamp load
1600
-
Max. load fluorescent lamp
1300
-
Max. load fluorescent lamp (Duo circuit)
2000
-
Max. switching current (cos phi = 0.6)
16
-
Number of contacts as normally closed contact
-
Number of contacts as change-over contact
-
Function
EV005735
This Acti9 iTLc is a modular impulse relay. This 1P device has 1 normally open contact. The rated current is 16A, 24VAC to 250VAC operating voltage and it operates with 24VAC control voltage. Electrical endurance goes up to 200000 cycles for AC-21 or 100000 cycles for AC-22. The switching frequency is 100 switching operations/day or 5 switching operations/minute. The duration of the command order should be between 50ms to 1s. It is mainly used for lighting control applications. It allow centralized control of a group of impulse relays whilst keeping local individual control of each impulse relay. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. It is DIN rail mountable. Pollution degree is 3. Overvoltage category is IV. The dimensions are (W) 18mm x (H) 84mm x (D) 60mm. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is from -20°C to 50°C. The storage temperature is from -40°C to 70°C. This product is compliant with IEC/EN 60669-1 and IEC/EN 60669-2-2 standard.
