СКУ: A9C15032

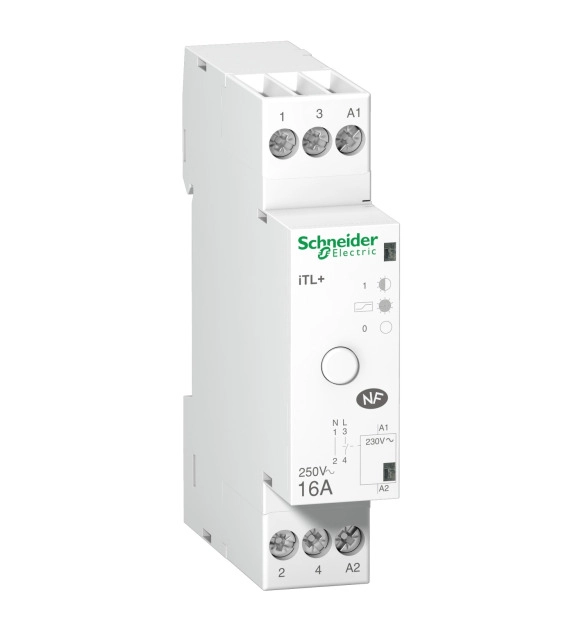

Импулсно реле ITL PLUS 16A 1P UC 230VAC IMPULSE RELAY
-
Brand
Schneider Electric
-
Number of contacts as normally open contact
1
-
Number of contacts as normally closed contact
1
-
Rated voltage
240
-
With auto test for earth leakage function
FALSE
-
Width in number of modular spacings
0.5
-
Suitable for max. number of poles main contact unit (total)
4
-
Voltage type for actuating
EV000509
-
Installed at the factory
FALSE
-
Number of contacts as change-over contact
-
Number of fault-signal switches
-
Device fitting
EV010066
-
Rated switch current
5
-
Additional equipment
EV010082
-
Suitable for max. current main contact unit
100
This Acti9 iCT is a modular contactor. It is a 3P remote control device with 3 normally open contacts. The rated current is 40A for AC-7a and 15A for AC-7b. The Ue rated operational voltage is 400VAC. The Uc control voltage is 220VAC to 240VAC. This device could be used for control circuits. This device could be used for remote switching lighting loads, small motors (fans, mixers) or HVAC system applications. It is compatible with all the Acti9 control auxiliaries, for lighting, heating & ventilation control applications. This product is compliant with IEC/EN 61095. Electrical endurance goes up to 100000 cycles for AC-7A or AC-1, 30000 cycles for AC-7C, AC-7B, AC-3, AC-5A or AC-5B. The maximum switching operations is 6 per minute. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. Pollution degree is 2. It is DIN rail mountable. Its width is 6 pitches of 9mm. The product color is white (RAL9003). The dimensions are (W) 85mm x (H) 54mm x (D) 60mm. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5°C to 60 °C. The storage temperature is from -40°C to 70°C.
