СКУ: IMD-IM400-1700C

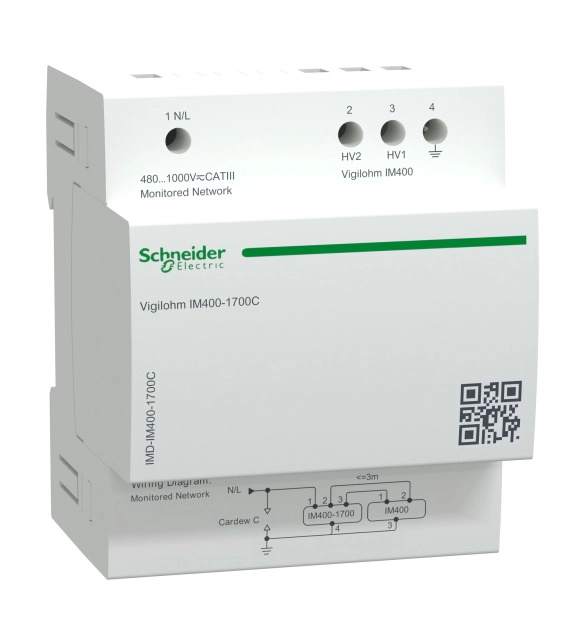

IM400-1700C Voltage Adaptor for IM400
-
Brand
Schneider Electric
-
Modular version
TRUE
-
Width
71
-
Depth
67.5
-
Height
85
-
Built as safety transformer
FALSE
-
Built as energy saving transformer
FALSE
-
Suitable for mounting on PCB
FALSE
-
Primary voltage 1
1000
-
Secondary voltage 1
480
-
Relative short circuit voltage
3
-
Built as isolating transformer
TRUE
-
Primary voltage 10
-
Secondary voltage 3
-
Primary voltage 4
-
Secondary voltage 4
-
Primary voltage 5
-
Secondary voltage 5
-
Primary voltage 6
-
Secondary voltage 6
-
Secondary voltage 10
-
Secondary voltage 2
-
Primary voltage 3
-
Primary voltage 2
-
Primary voltage 7
-
Secondary voltage 7
-
Primary voltage 8
-
Primary voltage 9
-
Secondary voltage 8
-
Secondary voltage 9
This accessory belongs to the Vigilohm range designed to monitor ungrounded/IT electrical networks at feeder level, in accordance to installation and products standards. This accessory is a voltage adaptor connected between the monitored network, and the insulation monitoring device. It allow to monitor insulation level of networks with a higher voltage level than what the devices can natively stand. This product is conformally coated, thus can be used in harsh environment and photovotaic sites in addition to industrial sites. For use with a IM400C insulation monitoring device on a 830V AC to 1700V AC network, between phases if neutral is accessible. Or on a 480V AC to 1000V AC network, between phases if neutral is not accessible. Compaitble with 480V DC to 1000V DC networks as well. The dimensions of this voltage adaptor are 90mm in height, 71mm in width, 67.5mm in depth for a product weight of 200 grams.
