СКУ: BMEH586040
HSBY Модул за процесор M580 - Level 6 - дистанционен
-
Brand
Schneider Electric
-
Supporting protocol for SERCOS
FALSE
-
SIL according to IEC 61508
EV000494
-
Performance level according to EN ISO 13849-1
EV000494
-
Radio standard GPRS
FALSE
-
Supporting protocol for INTERBUS-Safety
FALSE
-
Supporting protocol for AS-Interface Safety at Work
FALSE
-
Radio standard GSM
FALSE
-
Explosion safety category for dust
EV000494
-
Radio standard UMTS
FALSE
-
Explosion safety category for gas
EV000494
-
Supporting protocol for DeviceNet Safety
FALSE
-
Supporting protocol for Foundation Fieldbus
FALSE
-
Supporting protocol for SafetyBUS p
FALSE
-
Supporting protocol for PROFINET CBA
FALSE
-
Supporting protocol for PROFINET IO
FALSE
-
Supporting protocol for PROFIsafe
FALSE
-
Supporting protocol for ASI
FALSE
-
Radio standard Bluetooth
FALSE
-
Supporting protocol for PROFIBUS
FALSE
-
Appendant operation agent (Ex ia)
FALSE
-
Radio standard Wi-Fi 802.11
FALSE
-
Supporting protocol for KNX
FALSE
-
Supporting protocol for CAN
FALSE
-
Appendant operation agent (Ex ib)
FALSE
-
Supporting protocol for INTERBUS
FALSE
-
IO link master
FALSE
-
Supporting protocol for DeviceNet
FALSE
-
Suitable for safety functions
FALSE
-
Supporting protocol for Data-Highway
FALSE
-
Supporting protocol for LON
FALSE
-
Supporting protocol for SUCONET
FALSE
-
Depth
120
-
Supporting protocol for other bus systems
FALSE
-
With optical interface
FALSE
-
Number of HW-interfaces parallel
-
Number of interfaces PROFINET
-
Number of HW-interfaces other
-
Number of HW-interfaces serial TTY
-
Number of HW-interfaces Wireless
-
Supporting protocol for EtherNet/IP
TRUE
-
Supporting protocol for TCP/IP
TRUE
-
Supporting protocol for Modbus
TRUE
-
Number of HW-interfaces RS-422
-
Number of HW-interfaces USB
-
With potential separation
FALSE
-
Redundancy
FALSE
-
Number of HW-interfaces RS-485
-
Number of HW-interfaces RS-232
-
Width
35
-
Height
120
-
Number of HW-interfaces industrial Ethernet
3
-
Transmission rate
100000
-
Type of data transmission
EV000154

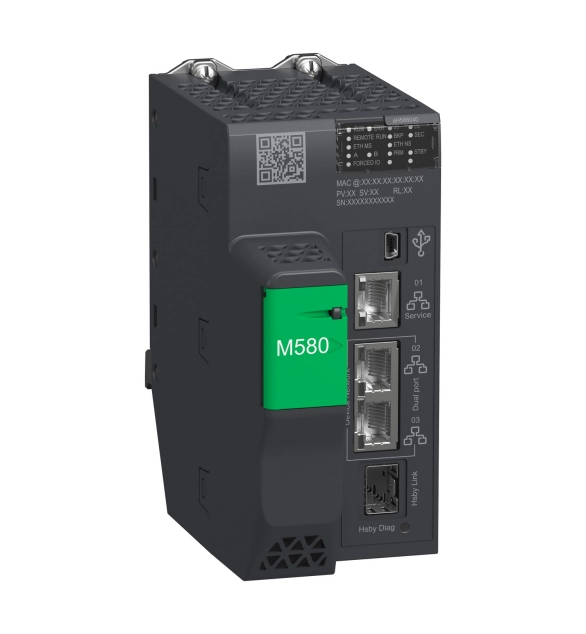

This standalone processor is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This product offers a maximum of 4 local rack configuration with up to 2048 discrete I/O channels and 512 analog I/O channels. The Modicon M580 automation platform complies with "TC" treatment requirements (treatment for all climates) and can operate in temperatures ranging from 0°C to +60°C/32°F to 140°F. This controller can help hybrid manufacturers to achieve better, measurable, earlier ROI and Up to 100% returns on their project investments in less than three months. It is equipped with 1 Ethernet port for service, 2 Ethernet ports for ring device network (EtherNet/IP and Modbus TCP) and 1 USB type mini B for programming console. It has an integrated RAM of 8MB for program, 768kb for data, 10kb for system memory and expandable flash of 4GB for data storage. This product is IP20 rated and offers 780710 hours of MTBF. The new grey design is applied for this module with a weight of 0.849kg and its new dimensions 64x130x135mm. This module meets the needs of applications in Transportation, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Power generation, Energies and Chemicals, and Data centers. This product complies with CE, UL, CSA, RCM, EAC, and UKCA standards and is certified for Power Generation, Merchant Navy, Railway and Hazardous areas applications. The CPU must be installed in the rack slots marked 00 and 01, with 2 screws on top of the CPU to maintain the module on the rack. This product can be used in combination with Modicon X80 (I/O, backplane, cable) and works with the EcoStruxure Control Expert programming software. Modicon M580 improves reliability and sustainability, as well as productivity with high performance and increases operating profitability due to efficient access to data.
