СКУ: BMEH582040C
HSBY модул за процесор M580 - Level 2 - дистанционен
-
Brand
Schneider Electric
-
Supporting protocol for SERCOS
FALSE
-
SIL according to IEC 61508
EV000494
-
Performance level according to EN ISO 13849-1
EV000494
-
Radio standard GPRS
FALSE
-
Supporting protocol for INTERBUS-Safety
FALSE
-
Supporting protocol for AS-Interface Safety at Work
FALSE
-
Radio standard GSM
FALSE
-
Radio standard UMTS
FALSE
-
Supporting protocol for DeviceNet Safety
FALSE
-
Supporting protocol for Foundation Fieldbus
FALSE
-
Supporting protocol for SafetyBUS p
FALSE
-
Voltage type of supply voltage
EV000461
-
Supporting protocol for PROFINET CBA
FALSE
-
Supporting protocol for PROFINET IO
FALSE
-
Supporting protocol for PROFIsafe
FALSE
-
Radio standard Bluetooth
FALSE
-
Supporting protocol for PROFIBUS
FALSE
-
Appendant operation agent (Ex ia)
FALSE
-
Radio standard Wi-Fi 802.11
FALSE
-
Front built-in possible
FALSE
-
Supporting protocol for KNX
FALSE
-
Supporting protocol for CAN
FALSE
-
Appendant operation agent (Ex ib)
FALSE
-
Supporting protocol for INTERBUS
FALSE
-
Supporting protocol for DeviceNet
FALSE
-
Rail mounting possible
FALSE
-
Supporting protocol for Modbus
FALSE
-
Supporting protocol for Data-Highway
FALSE
-
Supply voltage DC
24
-
Supporting protocol for LON
FALSE
-
Supporting protocol for SUCONET
FALSE
-
Wall mounting/direct mounting
FALSE
-
Supporting protocol for other bus systems
FALSE
-
With display
FALSE
-
With optical interface
FALSE
-
System accessory
FALSE
-
Supporting protocol for EtherNet/IP
TRUE
-
Supporting protocol for TCP/IP
TRUE
-
IO link master
TRUE
-
Number of HW-interfaces industrial Ethernet
4
-
Supporting protocol for IEC 61850 Ethernet
FALSE
-
Suitable for safety functions
TRUE
-
Rack-assembly possible
TRUE
-
Number of HW-interfaces USB
1
-
Supporting protocol for IEC 60870
FALSE
-
Supporting protocol for DNP3
FALSE
-
Additional program memory possible
TRUE
-
Long-Term Evolution (LTE)
FALSE
-
Model
EV000241
-
Height
134.6
-
Width
130.3
-
Redundancy
TRUE
-
Explosion safety category for dust
EV006566
-
Depth
64.6
-
Explosion safety category for gas
EV006563
-
Processing time (1K, binary operation)
0.1
-
Type of memory
EV009358
-
Memory size
8192
-
Supporting protocol for ASI
TRUE
-
Number of analogue inputs
-
Number of analogue outputs
-
Number of HW-interfaces parallel
-
Number of interfaces PROFINET
-
Number of HW-interfaces Wireless
-
Number of HW-interfaces RS-422
-
Number of HW-interfaces RS-485
-
Number of HW-interfaces RS-232
-
Number of digital inputs
-
Number of HW-interfaces other
-
Number of digital outputs
-
Max. number of time switches
-
Number of relay outputs

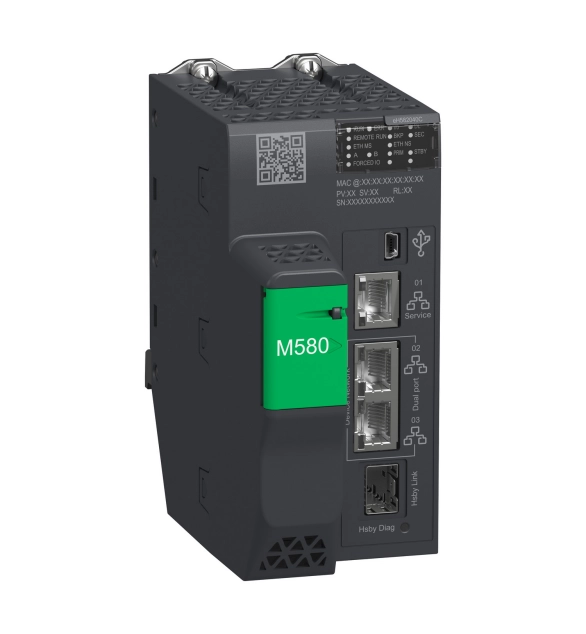

This redundant processor is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This product offers a maximum of 8 remote rack configuration with up to 8192 discrete I/O channels and 2048 analog I/O channels. Thanks to a protective coating on its circuit board, this product can be used in harsh environments with a temperature range from -25°C to +60°C/-13°F to 140°F. This controller can help hybrid manufacturers to achieve better, measurable, earlier ROI and Up to 100% returns on their project investments in less than three months. It is equipped with 1 Ethernet port for service, 2 Ethernet ports for ring remote I/O network (Remote IO racks only) and 1 USB type mini B for programming console. It has an integrated RAM of 8MB for program, 768kb for data, 10kb for system memory and expandable flash of 4GB for data storage. This product is IP20 rated and offers 644261 hours of MTBF. The new grey design is applied for this module with a weight of 0.849kg and its new dimensions 64x130x135mm. This module meets the needs of applications in Transportation, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Power generation, Energies and Chemicals, and Data centers. This product complies with CE, UL, CSA, RCM, EAC, UKCA, and ATEX/IECEx zone 2/22 standards and is certified for Power Generation, Merchant Navy, Railway and Hazardous areas applications. RJ45 (490NAC0100) and FO singlemode (490NAC0201) connectors can be used with this redundant cpu. The CPU must be installed in the rack slots marked 00 and 01, with 2 screws on top of the CPU to maintain the module on the rack. This product can be used in combination with Modicon X80 (I/O, backplane, cable) and works with the EcoStruxure Control Expert programming software. Modicon M580 improves reliability and sustainability, as well as productivity with high performance and increases operating profitability due to efficient access to data.
