СКУ: BMXEHC0200
HIGH SPEED COUNTER 2 CH
-
Brand
Schneider Electric
-
SIL according to IEC 61508
EV000494
-
Performance level according to EN ISO 13849-1
EV000494
-
Explosion safety category for dust
EV000494
-
Explosion safety category for gas
EV000494
-
Appendant operation agent (Ex ia)
FALSE
-
Appendant operation agent (Ex ib)
FALSE
-
Suitable for safety functions
FALSE
-
Depth
92
-
Redundancy
FALSE
-
Width
32
-
Suitable for weighing
FALSE
-
Suitable for temperature control
FALSE
-
Suitable for NC
FALSE
-
Suitable for SSI
FALSE
-
Suitable for welding control
FALSE
-
Suitable for pressure control
FALSE
-
Suitable for CNC
FALSE
-
Suitable for detection absolute value
FALSE
-
Suitable for flying saw
FALSE
-
Suitable for cam controller
FALSE
-
Suitable for counting
TRUE
-
Suitable for electronic positioning
TRUE
-
Suitable for single-axis positioning
TRUE
-
Suitable for single-axis controller
TRUE
-
Suitable for multi-axis positioning
TRUE
-
Suitable for incremental data detection
TRUE
-
Suitable for multi-axis control
TRUE
-
Number of functions
6
-
Height
103.76
-
Suitable for flux controller
TRUE
-
Suitable for flux measurement
TRUE
-
Suitable for path controller
TRUE

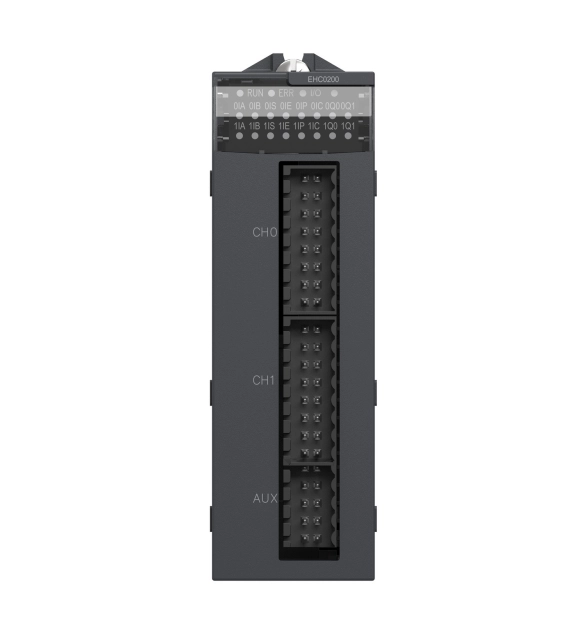

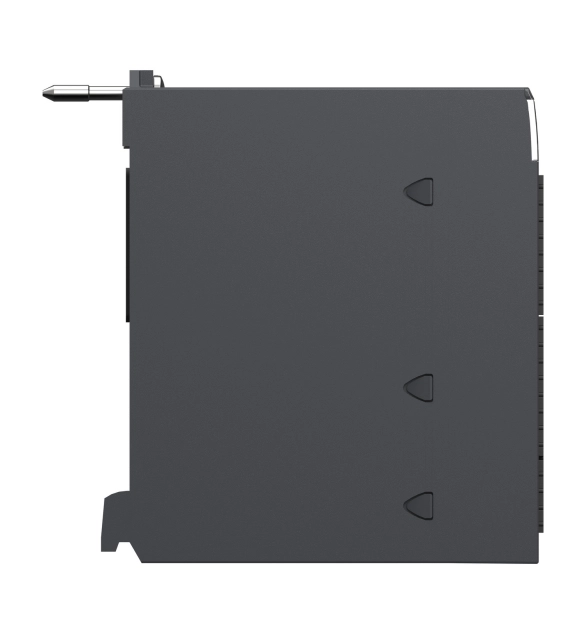

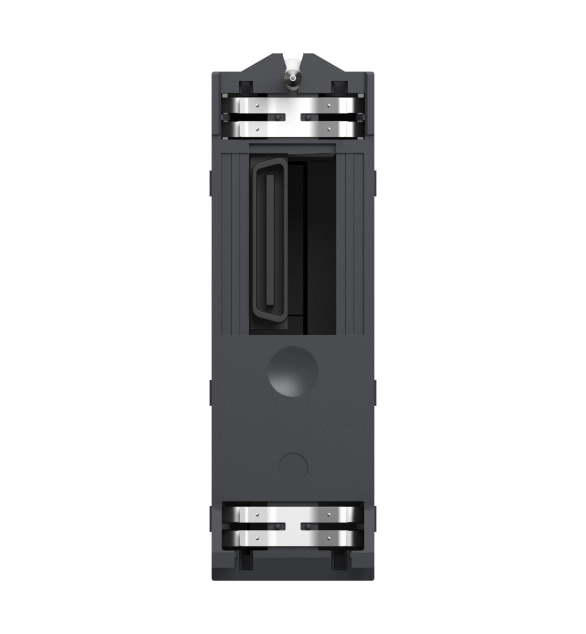

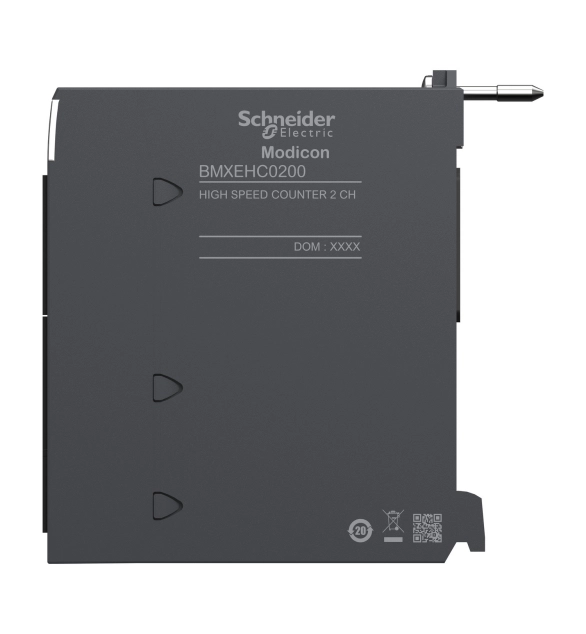

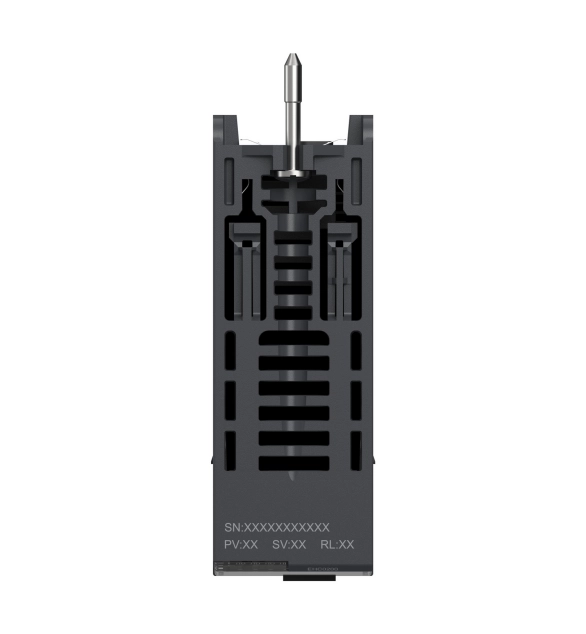

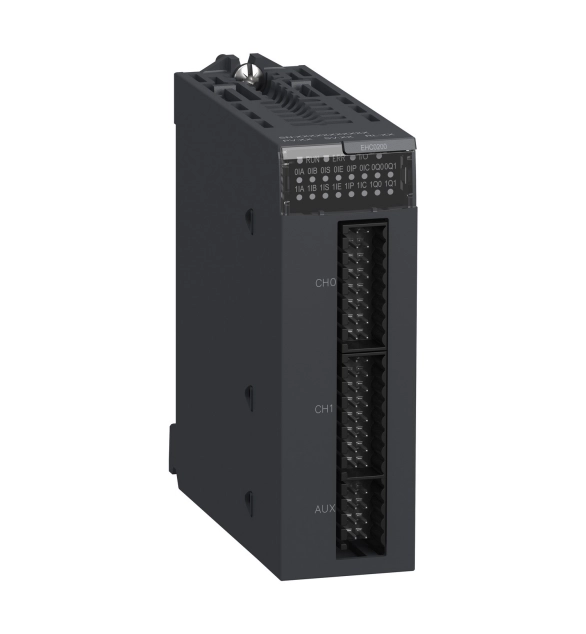

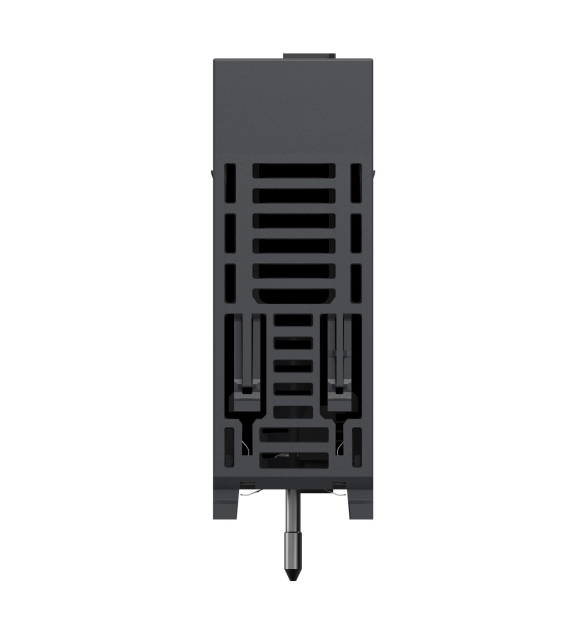

This counter module is part of the Modicon X80 range, an offer of common input/output for Modicon M340 and Modicon M580. This counter module for severe environments is equipped with 2 high speed channels. The Modicon X80 automation platform complies with "TC" treatment requirements (treatment for all climates) and can operate in temperatures ranging from 0°C to +60°C/32°F to 140°F. It is a counter module with an I/O voltage of 24V DC and a current consumption of 100mA at 3.3V DC bus, 40mA at 24V DC rack, 80mA at 24V DC sensor. Its casing provides IP20 protection of the electronics. This module has a weight of 0.112kg. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product complies with CE, UL, CSA, RCM, and EAC standards and is certified for Power Generation, Merchant Navy, Railway and Hazardous areas applications. This input compatible with 19.2V to 30V 2-wire/3-wire proximity sensor, incremental encoder with push-pull outputs, 10V to 30V totem pole. The product must be installed on the rack and fixed with 2 screws. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC). Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs.
