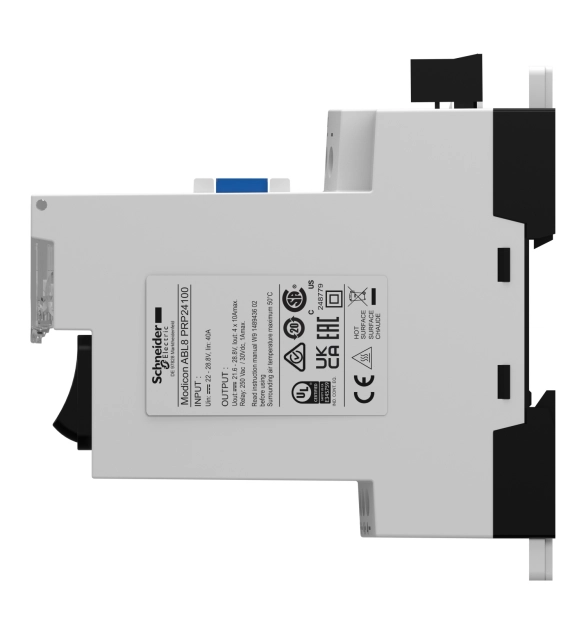

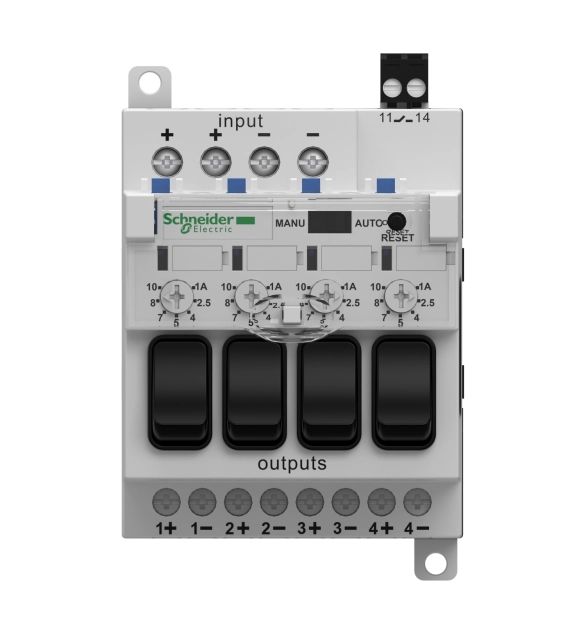

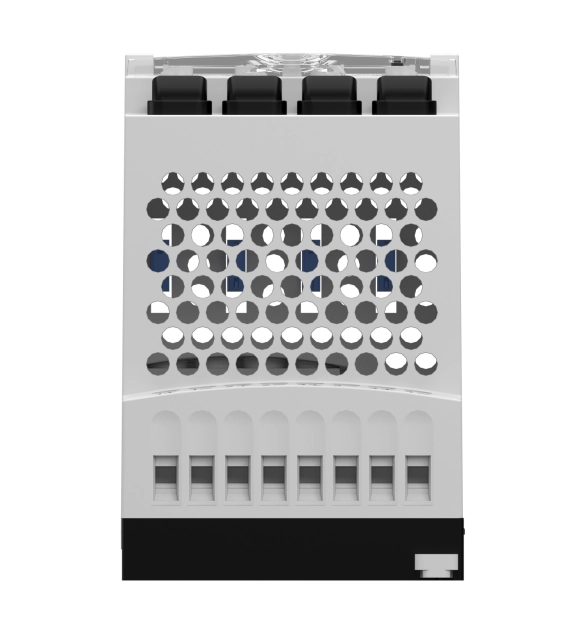

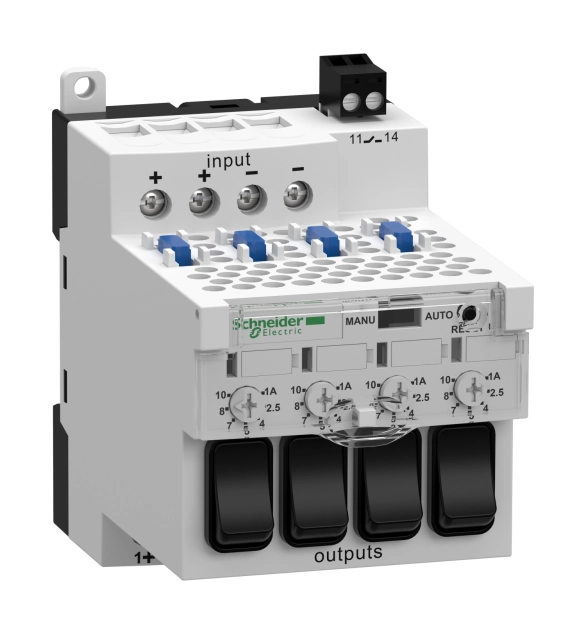

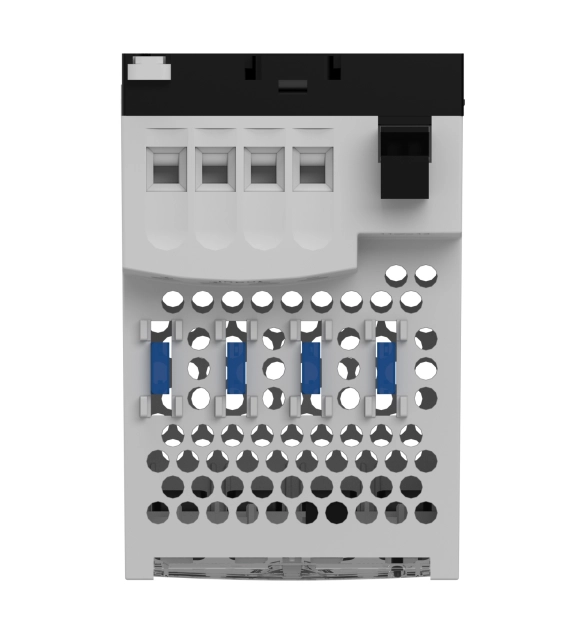

СКУ: ABL8PRP24100
защитаитен модул
-
Brand
Schneider Electric
-
Type of electric connection
EV000415
-
Width
44
-
SIL according to IEC 61508
EV000494
-
Performance level according to EN ISO 13849-1
EV000494
-
Voltage type of supply voltage
EV000461
-
Rail mounting possible
TRUE
-
Modular version
TRUE
-
Depth
140
-
Suitable for safety functions
TRUE
-
Stabilized
TRUE
-
Short-circuit-proof
TRUE
-
Output voltage stabilized
TRUE
-
Height
146
-
Direct mounting possible
FALSE
-
Nominal value output voltage 1
24
-
Wall mounting possible
FALSE
-
1st secondary output voltage
24
-
Degree of protection (IP)
EV006606
-
Rated supply voltage at DC
24
-
Secondary voltage adjustable
TRUE
-
Power output
145
-
Nominal value output current 1
40
-
Max. output current 1
40
This functionnal module is part of the Modicon ABL range, an offer of power supplies for industrial use. It is a buffer module. Its holding time is 100ms at 40A, and 2seconds at 1A. It takes over and continues to provide the 24V dc voltage in the event of short interruptions. It has a rated input of 24V to 28.8V DC, a rated output current of 40A at 24V DC. It operates from minus 25degrees celcius to plus 60degrees celcius, and from 0meter to 2000meters. It measures 146mm high, 86mm wide and 146mm deep. It weighs 1.2kg. It is a functionnal module for power supply for industrial use. It conforms to CE marking, EAC, CSA, RCM, UL and UKCA certifications. This functional module is compatible with Modicon ABL8RP, Modicon ABL8WP and ABLU3A Universal power supplies. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on 35mm DIN rail. It brings energy to your automated systems. Designed with extreme compactness for simple machines and applications.
