СКУ: NTSXTB12001H
H TermBlock 12 Pts + Cover Screw 5mm DC
-
Brand
Schneider Electric
-
Suitable for safety functions
FALSE
-
Height
100
-
Type of output voltage
EV000461
-
Redundancy
FALSE
-
Width
15
-
Type of voltage (input voltage)
EV000461
-
Depth
80
-
Input voltage at DC
24
-
Output voltage at DC
24
-
Max. input current DC
10.5
-
Max. output current DC
10.5

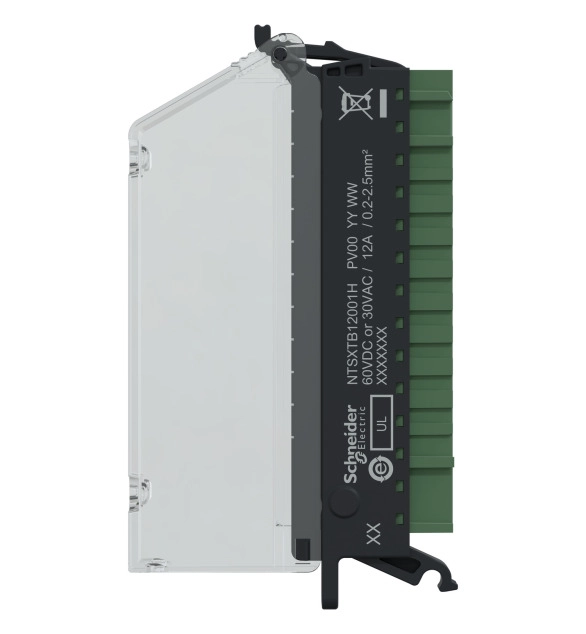

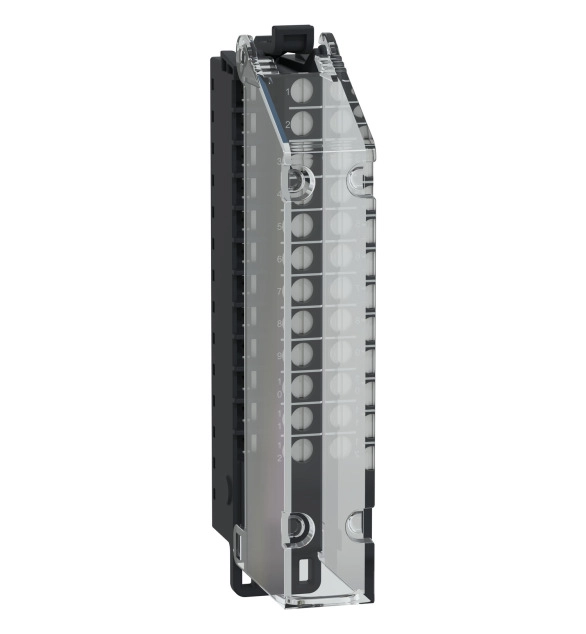

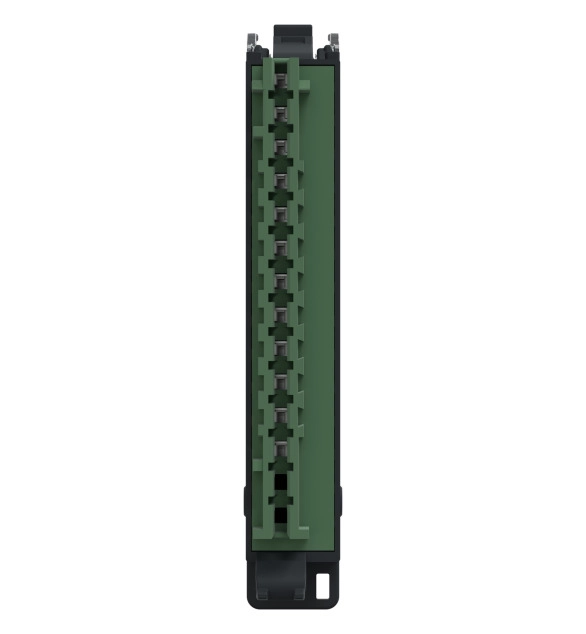

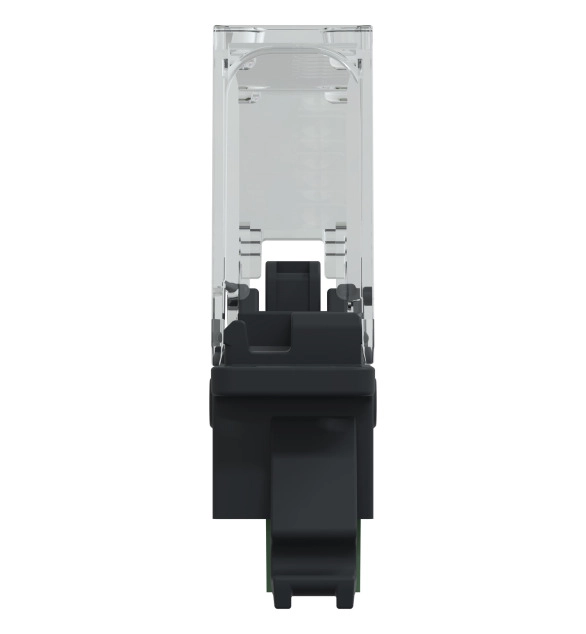

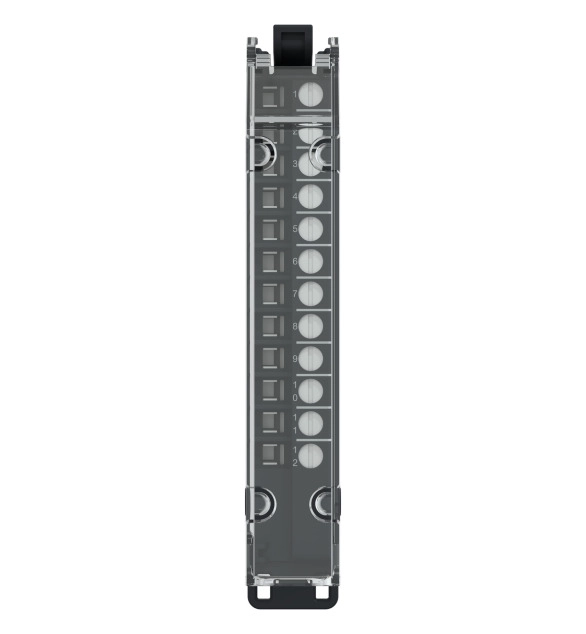

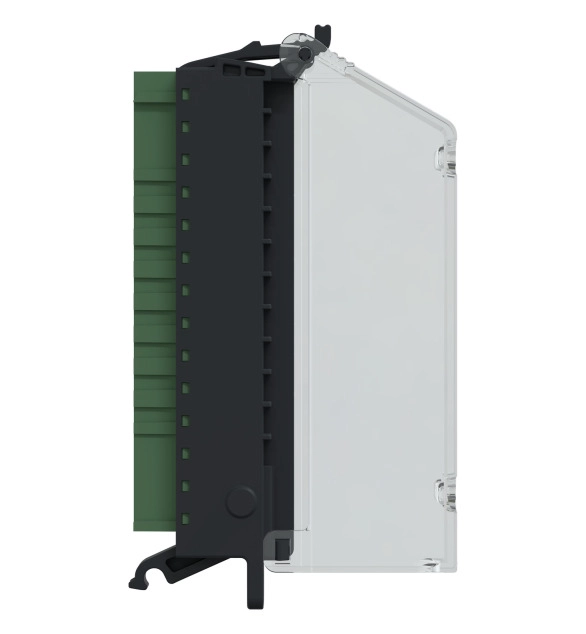

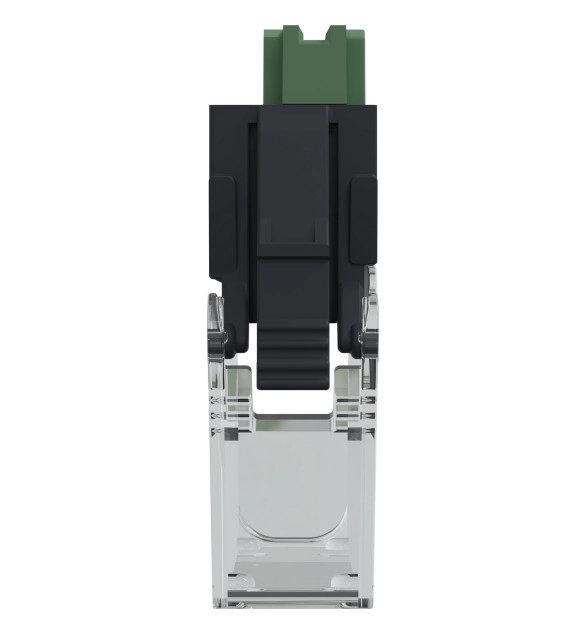

This spring terminal block is part of the Modicon Edge I/O NTS range. It is a spring terminal block with a plastic cover to use on the 100mm high modules. It has 12 connection points and a 5mm Pitch and handles DC voltage. This removable terminal block allows quick and easy disconnection of wiring, minimizes system downtime during maintenance or troubleshooting. It functions within a temperature range of minus 40 to 70 degrees Celsius. It has an IP protection rating of IP20 and benefits from a Protective coating. It is compatible with discrete I/O, analog I/O, Counting, and Field Device Master modules. It is sold individually per pack. It connects to the front face of the module. Modicon Edge I/O NTS is a future-ready I/O system for data aggregation. Modicon Edge I/O NTS is a robust distributed IP20 I/O system with wide choice of modules.
