СКУ: GVX500K1250NHS

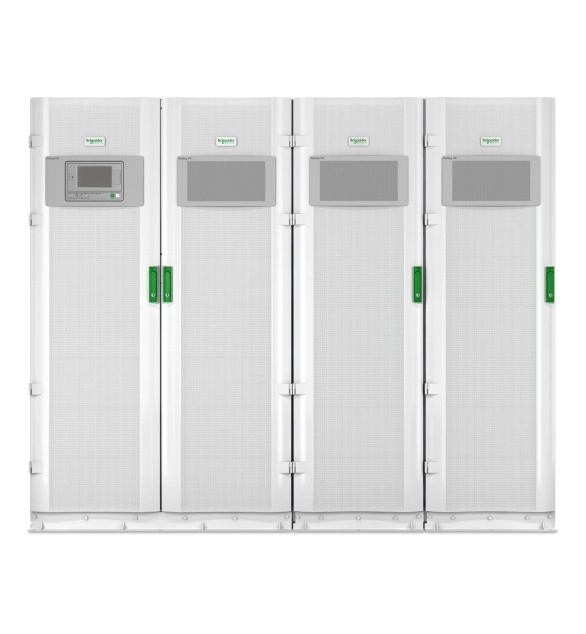

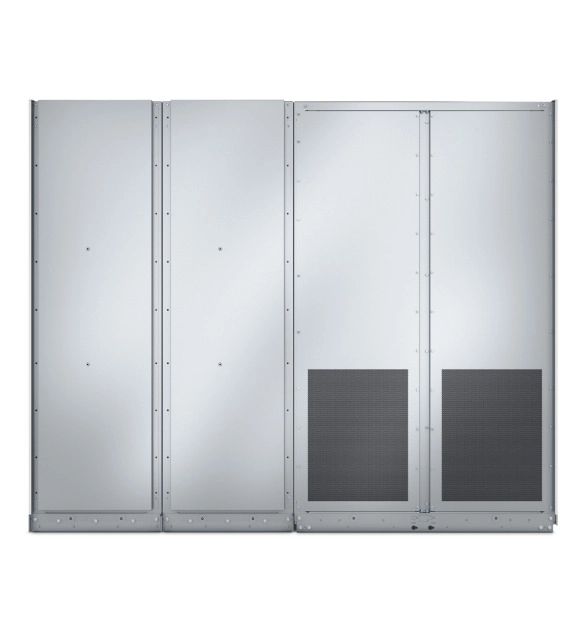

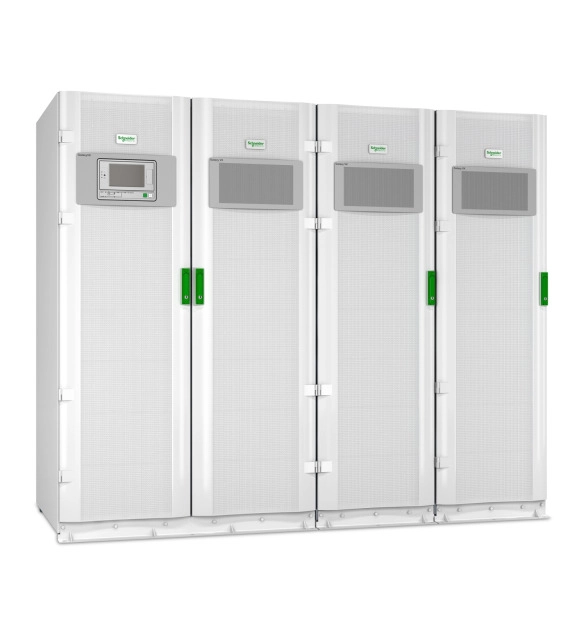

GVX 500kVA Scalable to 1250kVA 400V
-
Brand
Schneider Electric
-
Voltage type
EV000460
-
Weight
200
-
Potential free switch contact
TRUE
-
SNMP
TRUE
-
Number of output connections C19
-
Number of output connections with protective contact (SCHUKO)
-
Overall efficiency
96
-
With communication interface RS-232
FALSE
-
Auto shut down function
FALSE
-
Primary frequency
50
-
Secondary frequency
50
-
Construction type
EV000870
-
Number of output connections French standard (Type E)
-
Suitable for network-management
TRUE
-
USB interface
TRUE
-
Max. voltage distortion output (linear load)
3
-
USV- technology
EV007607
-
Number of output connections C13
-
Input connection
EV000154
-
Output power factor
1
-
Modular
TRUE
-
Number of output connections fixed connection
1
-
Width
521
-
Height
1485
-
Depth
847
-
Input voltage
380
-
Number of phases primary
3
-
Number of phases secondary
3
-
Output voltage
380
-
Efficiency in eco-mode
99
-
Output apparent power
50000
-
Output effective power
50000
This is a straight length for Canalis KBB busbar trunking. Canalis KBB is designed for lighting and power socket distribution. The rated operational current is 40A at 35°C. The rated operational voltage is from 230VAC to 400VAC 50/60Hz. This straight length is made of 2 tap-off outlets maximum spaced every meter on the main circuit (front), and 1 tap-off outlet maximum on the adjacent circuit (rear). It embeds 2 independent electrical circuits with L+N+PE polarity. This feed unit is delivered with an optional remote control circuit made of 2 conductors, and is able to transport and distribute DALI protocol for lighting management. It provides IP55 protection conforming to IEC 60529 standard, which guarantees trunking protection against splashes and dust. It provides IK06 protection conforming to IEC 62262 standard against external mechanical impacts. The length is 2m, and the section is 46mm x 46mm. Sold in lots of 6 units. It is made off RAL 9003 white lacquered sheet steel. Canalis KBB is compliant with IEC/EN 61439-6 standard. It is non flame propagating as per the recommendations of IEC 60332-3 standard. All the insulating and plastic materials are halogen free and have enhanced fire withstand capabilities (IEC 60695-2).
