Главен модул за крайни устройства, сериен RS485/RS232, Modbus RTU, ASCII, клиент, 115 kbps, Modicon Edge вх./изх. NTS | Spark & Co
  • 3D
  • 3D
  • 3D
  • 3D
  • 3D
  • 3D
  • 3D
|

СКУ: NTSFMB0120

Главен модул за крайни устройства, сериен RS485/RS232, Modbus RTU, ASCII, клиент, 115 kbps, Modicon Edge вх./изх. NTS

  • Brand
    Schneider Electric
  • Degree of protection (IP)
    EV006405
  • Supporting protocol for SERCOS
    FALSE
  • SIL according to IEC 61508
    EV000494
  • Performance level according to EN ISO 13849-1
    EV000494
  • Radio standard GPRS
    FALSE
  • Fieldbus connection over separate bus coupler possible
    FALSE
  • Supporting protocol for INTERBUS-Safety
    FALSE
  • Supporting protocol for AS-Interface Safety at Work
    FALSE
  • Radio standard GSM
    FALSE
  • Explosion safety category for dust
    EV000494
  • Radio standard UMTS
    FALSE
  • Explosion safety category for gas
    EV000494
  • Supporting protocol for DeviceNet Safety
    FALSE
  • Supporting protocol for EtherNet/IP
    FALSE
  • Supporting protocol for Foundation Fieldbus
    FALSE
  • Radio standard LTE
    FALSE
  • Supporting protocol for SafetyBUS p
    FALSE
  • Voltage type of supply voltage
    EV000461
  • Supporting protocol for PROFINET CBA
    FALSE
  • Supporting protocol for PROFINET IO
    FALSE
  • Supporting protocol for PROFIsafe
    FALSE
  • Radio standard eGPRS
    FALSE
  • Supporting protocol for ASI
    FALSE
  • Radio standard Bluetooth
    FALSE
  • Supporting protocol for PROFIBUS
    FALSE
  • Appendant operation agent (Ex ia)
    FALSE
  • Radio standard Wi-Fi 802.11
    FALSE
  • Supporting protocol for TCP/IP
    FALSE
  • Front built-in possible
    FALSE
  • Supporting protocol for KNX
    FALSE
  • Supporting protocol for CAN
    FALSE
  • Appendant operation agent (Ex ib)
    FALSE
  • Supporting protocol for INTERBUS
    FALSE
  • IO link master
    FALSE
  • Supporting protocol for DeviceNet
    FALSE
  • Suitable for safety functions
    FALSE
  • Supporting protocol for Data-Highway
    FALSE
  • Rack-assembly possible
    FALSE
  • Supporting protocol for LON
    FALSE
  • Supporting protocol for SUCONET
    FALSE
  • Wall mounting/direct mounting
    FALSE
  • Height
    100
  • Rail mounting possible
    TRUE
  • Supporting protocol for other bus systems
    FALSE
  • System accessory
    FALSE
  • Depth
    69
  • Supporting protocol for Modbus
    TRUE
  • With potential separation
    FALSE
  • Width
    15
  • Supply voltage DC
    20.4

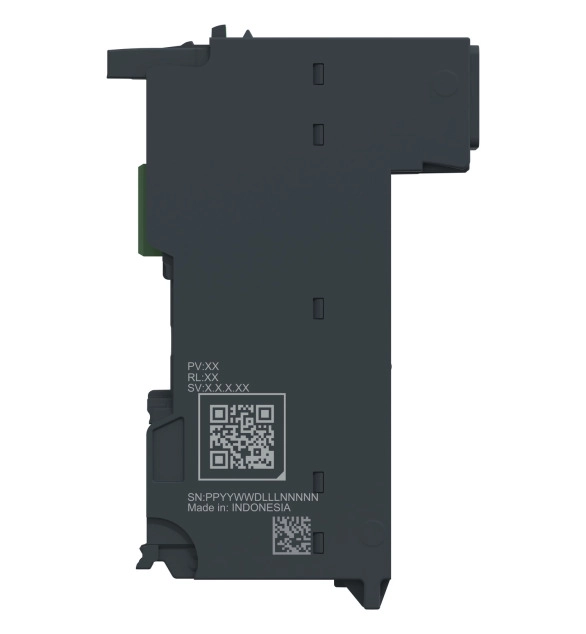

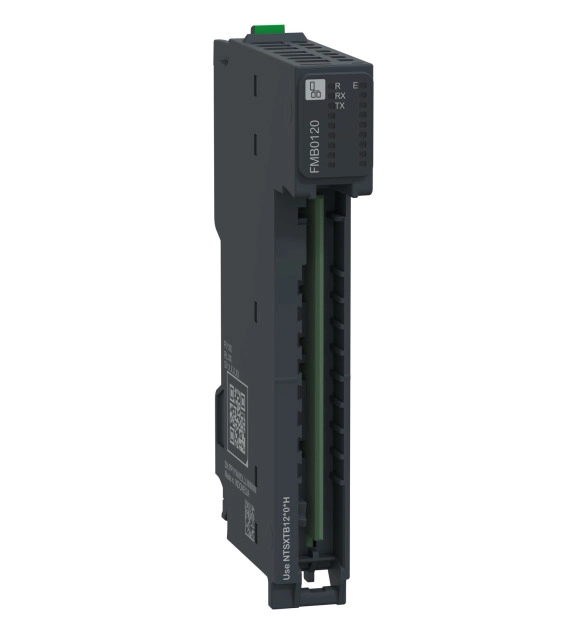

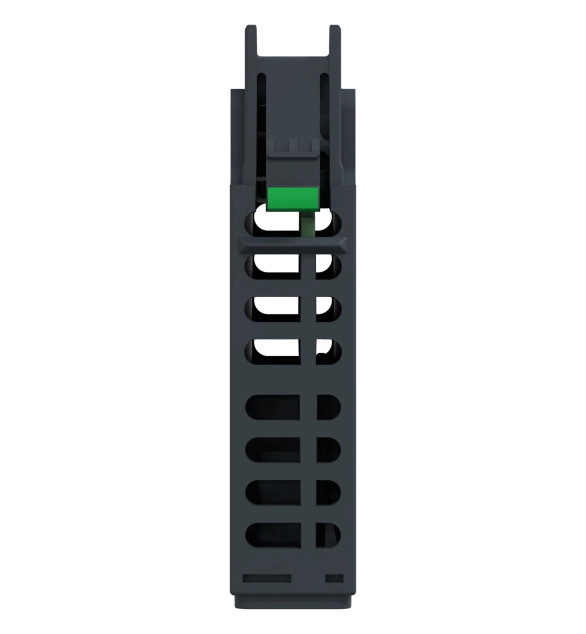

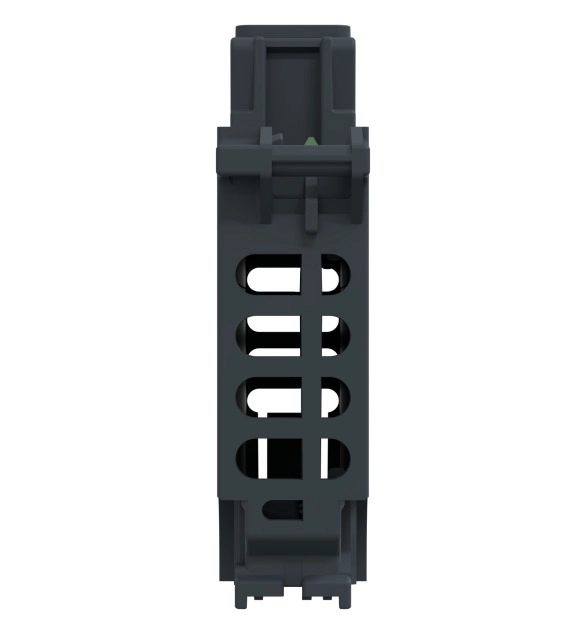

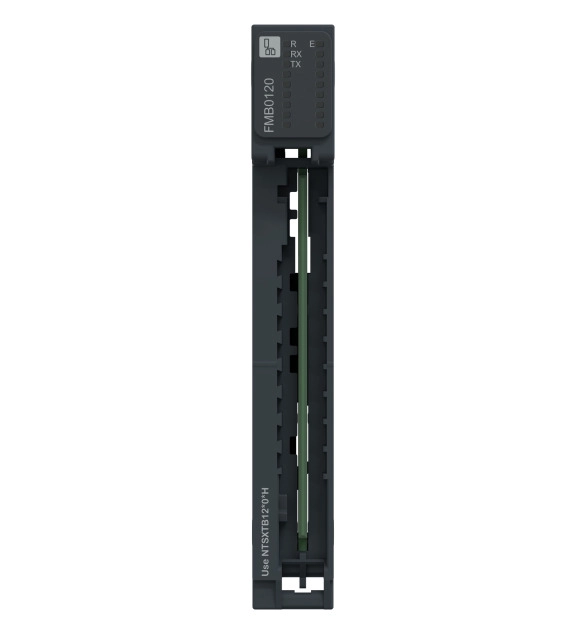

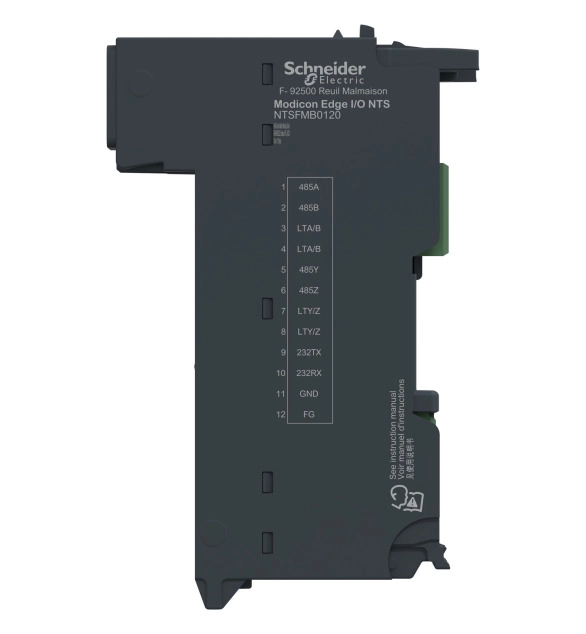

This field device master module is part of the Modicon Edge I/O NTS range. It serves as a communication interface for a cluster utilizing Serial RS485/RS232, as well as Modbus RTU and ASCII protocols. The Exchange mode is IO Scanner Device mode for Up to 32 Modbus devices that can be addressed. It manages communication between field devices like sensors, actuators, and controllers, and the control system. It functions within a temperature range of minus 20 to 60 degrees Celsius. Its IP degree of protection is IP20. It measures 116mm high, 15mm wide, 69mm deep, and weighs 0.050kg. It is compatible with I/O modules and mounting accessories. It is sold individually per pack. The module is installed on a base that mounts on a DIN rail. Modicon Edge I/O NTS is a future-ready I/O system for data aggregation. Modicon Edge I/O NTS is a robust distributed IP20 I/O system with wide choice of modules.
