СКУ: XPEM311
Foot sw metal BL 1step 2contact 1NC+NO
-
Brand
Schneider Electric
-
Material
EV000914
-
Rated operation current Ie at AC-15, 230 V
3
-
Switching function latching
FALSE
-
Degree of protection (NEMA)
EV000154
-
Number of contacts as normally open contact
2
-
Colour
EV000080
-
Number of contacts as normally closed contact
2
-
Degree of protection (IP)
EV006422
-
Height
135
-
Number of switch positions
1
-
With protective insulation
FALSE
-
With protection hood
TRUE
-
Suitable for safety functions
TRUE
-
Type of command
EV005135
-
With interlocking
FALSE
-
Width
160
-
Depth
186
-
Number of contacts as change-over contact

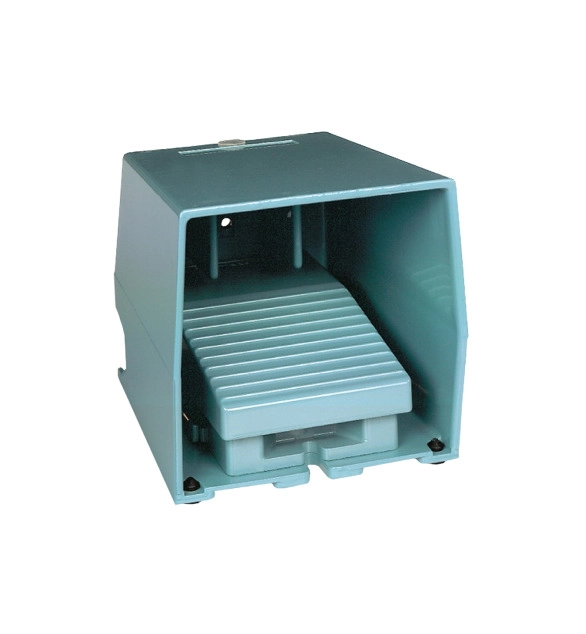

This XPE blue, metal, single foot switch is an ideal solution for providing start and stop instructions for many types of industrial machines, running in various operating modes like normal (pulsed) start, inching, hold to run. It is designed such that the operating pedal is close to the ground and at a comfortable angle. Its protective cover makes it ideal for issuing a safety start instruction for potentially dangerous machines, avoiding the risk of accidental operation, either by human action or by falling objects. It incorporates snap action contacts with positive opening operation. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66.
