СКУ: VT2332

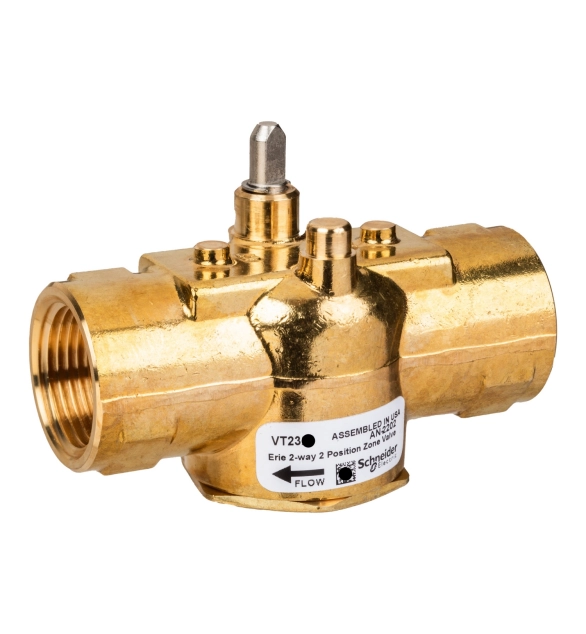

Erie Zone Valve, 2-Way, PN16, DN20 (3/4"), Rp Thread, Kvs 2.2 m?/h (Cv 2.5), Pop-Top Actuator Connection, Brass Body
-
Brand
Schneider Electric
-
Surface protection
EV006034
-
Material quality
EV000154
-
With coupling connection 1
FALSE
-
Max. medium temperature (continuous)
93
-
Kvs value
2.2
-
With coupling connection 2
FALSE
-
Housing material
EV000149
-
Flange compression class
EV020104
-
With T-piece for 4-way connection
FALSE
-
With coupling connection 3
FALSE
-
Installation method, distributive
TRUE
-
Leakage loss of Kvs value
0.01
-
Connections
EV004442
-
Outer pipe diameter all connections
20
-
Article compression class
EV020244
-
Nominal diameter
EV005373
-
Min. medium temperature (continuous)
The industry leading Erie Zone valve is suitable for on/off control of hot and chilled water in terminal unit applications. High flow capacity paddle design and the unique ‘pop-top’ actuator connection allows for a quick and simple installation. Valve size: DN20, Rp 3/4 thread, Flow capacity, Kvs: 2.2 m³/h. Pressure class PN20. The valve provide a working temperature range of 0 °C to 93 °C.
