СКУ: VW3M8222R1000

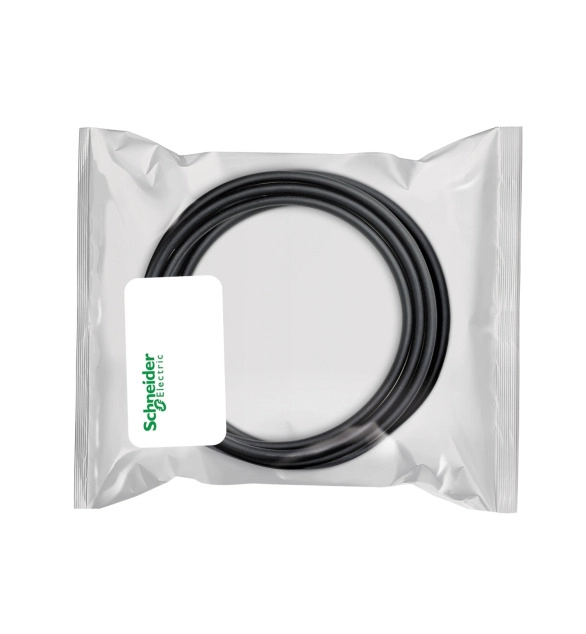

ENCODER CABLE, 100 M, OPEN - OPEN
-
Brand
Schneider Electric
-
Number of poles
4
-
Length
100
-
Suitable for analogue signals
FALSE
-
Type of electrical connection, box-sided
EV000154
-
Suitable for digital signals
TRUE
-
Type of electrical connection, field-sided
EV000154
-
Function
EV005745
-
Suitable for input board PLC
TRUE
-
Suitable for output card PLC
TRUE
This product is part of the Lexium 32 range, an offer of servo drives from 0.15kW to 11kW and associated servo motors. This is a shielded cable, free at both ends for creating control cordsets. This connection accessory is a cable allowing to create control cordsets to use betwen a servo drive and a servo motor. It is used to create cordsets for SinCos Hiperface encoders, to connect to servo drives and servo motors. Its composition is 3 x (2 x 0.14squaremm/AWG 26) + 2 x (2 x 0.34squaremm/AWG 22). its length is 100m. It weighs 5.6kg. BMH servo motors associated with the Lexium 32 servo drive are intended for applications such as Packaging, Textile, gantry cranes, Hoists. This cable is certified c-UR-us, and compliant with DESINA. This connector is compatible with Lexium 32 servo drives, Altivar Process ATV900 and Altivar Machine ATV340. Lexium 32 is a servo drive range providing drive and motor combination that has exactly the right power, performance and functionality. The Lexium 32 range includes four servo drive models with power ratings from 0.15kW to 11kW, and two servo motor ranges, BMH and BSH series.
