СКУ: ZB4BB2
MULTI-DIRECTION LEVER HEA
-
Brand
Schneider Electric
-
Colour front ring
EV000291
-
With front ring
TRUE
-
Degree of protection (NEMA)
EV000154
-
Analogue output signal configurable
FALSE
-
Degree of protection (IP)
EV006422
-
Number of switch positions
2
-
Material front ring
EV000914
-
With retraction in 0-position
TRUE
-
Rated operation current Ie at AC-21, 400 V
10
-
Coder
FALSE
-
Number of actuation directions
2
-
Locking in 0-position
FALSE
-
Centre mounting, hole diameter
22.5
-
Number of normally open contacts per actuation direction
-
Joy stick length
107
-
Number of make-and-break contacts per direction
-
Number of normally closed contacts per actuation direction

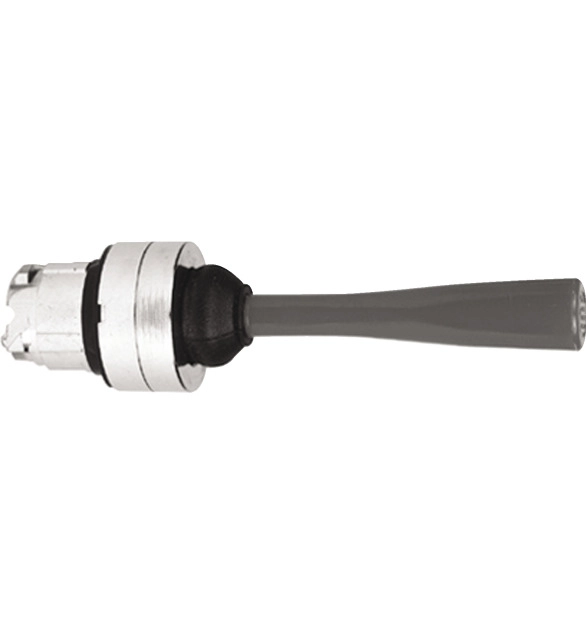

This Harmony XB4, black head operates with omnidirectional and spring return / impulse mechanism. This wobble stick head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible omnidirectional controllers. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
