СКУ: GV4APN02
TeSys GV4 - удължена ръкохватка, червена - IP54
-
Brand
Schneider Electric
-
Suitable for switch disconnector
FALSE
-
Suitable for power circuit breaker
TRUE
-
Suitable for emergency stop
FALSE
-
With restart blockage
FALSE
-
Padlock locking
TRUE
-
With key lock
FALSE
-
With extension shaft
TRUE
-
Colour
EV000233

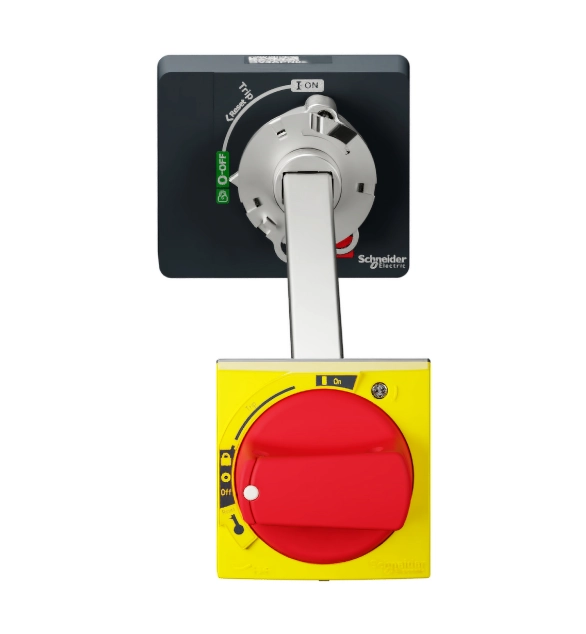

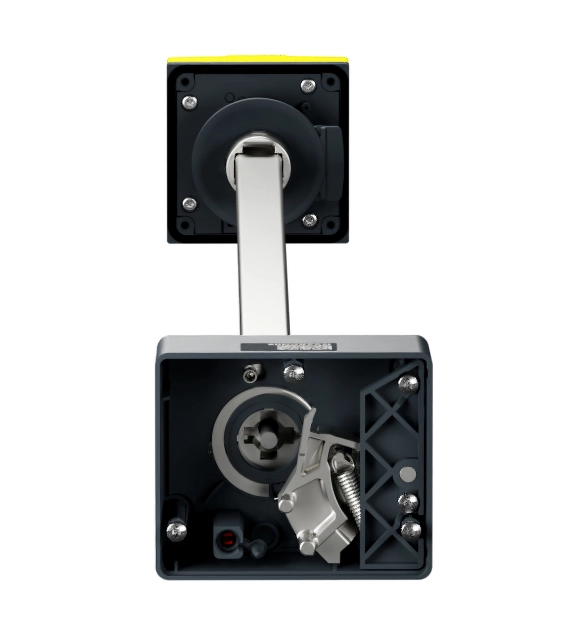

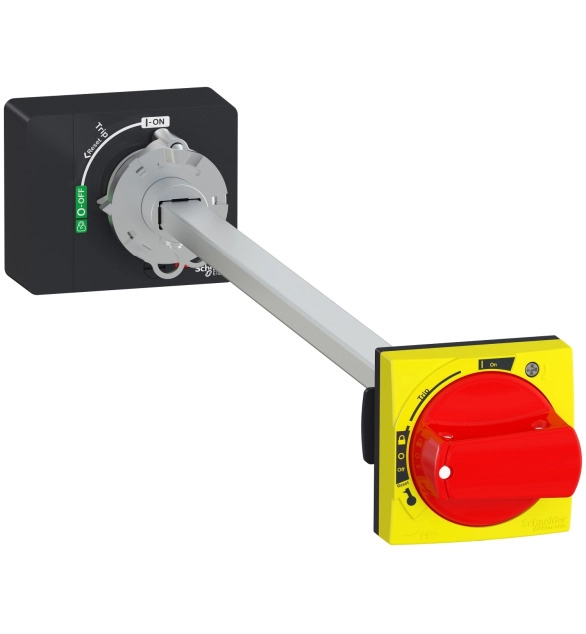

TeSys GV extended rotary handle, for motor circuit breakers GV4 mounted inside an enclosure and to be operated externally. For emergency switch usage, it provides a red handle on yellow front plate with indication of 3 positions OFF, ON, TRIP. To be mounted on the door of the enclosure, the handle mechanism ensures an IP54 protection to the mounting. It also includes a mounting adaptor to be screwed on the face of the circuit breaker, and an extension shaft to be be adjusted in length (distance between the door and the back of the circuit breaker must be in range 214-627mm). Padlockable in OFF position with up to 3 padlocks (to be ordered separately).
