СКУ: METSEPM2110
Електромер LED дисплей, POP, клас 1
-
Brand
Schneider Electric
-
Mounting method
EV000242
-
Width
90
-
Voltage type
EV000509
-
Supporting protocol for Modbus
FALSE
-
Supporting protocol for LON
FALSE
-
Model
EV010943
-
Measured value memory
FALSE
-
Indication
EV005572
-
Measurement type load profile
FALSE
-
Height
95
-
Max. current (Imax)
6
-
Pole type
EV011974
-
Nominal current (In)
5
-
Frequency measurement
TRUE
-
Effective power
TRUE
-
Power factor
TRUE
-
Min. value storage
TRUE
-
Wth communication interface M-Bus
FALSE
-
Apparent power
TRUE
-
Top arbour measurement
TRUE
-
With communication interface according to EN 62056-21
FALSE
-
Reactive power
TRUE
-
Accuracy class
0.5
-
Step angle (cos phi)
FALSE
-
Max. value storage
TRUE
-
With communication interface KNX
FALSE
-
Measuring range
80
-
With communication interface RS-485
FALSE

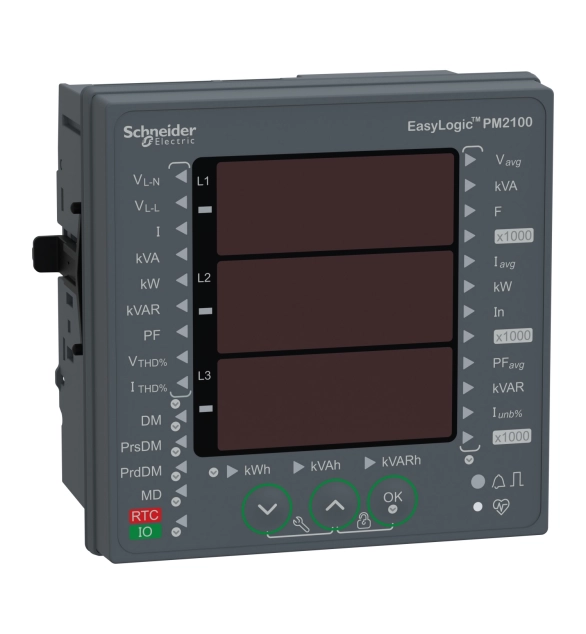

This device is a panel mount or flush mount power meter with a 96mm by 96mm bezel size having 3 rows of bright red 4 digits 14.2 mm height LED display. The meter measures active energy as per accuracy class Class 1.0 complying to IEC 62053-21 standard with sampling rate of 64 samples per cycle. Able to measures all three vectors of power and energy such as Active, Apparent & Reactive beside Voltages, Current, Frequency and Power Factor. Plus the total Harmonic Distortion for both current and volrage on per phase basis. The meter will function in either 50Hz or 60Hz network frequency and accepts universal control power voltages ranging from 44 to 300 V Line to Neutral AC or DC voltages. Rated current for this meter is either 1A or 5A input. it supports up to 13 different types of wiring schemes under Single Phase, Two Phase or Three Phase configuration types. The range of measurement voltage between Phases is 35 to 480 V Line to Line AC at 45 to 65 Hz while it is 20 to 277 V between Line and Neutral. The meter also has one digital pulse output for any energy parameters congigurable to different energy scaling. Product dimensions are as follows: width 3.78 in (96 mm), depth 2.16 in (54 mm), height 3.78 in (96 mm) and product weight 10.58 oz (300 g).
